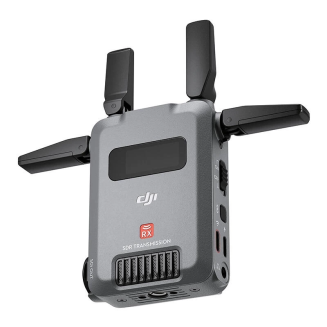

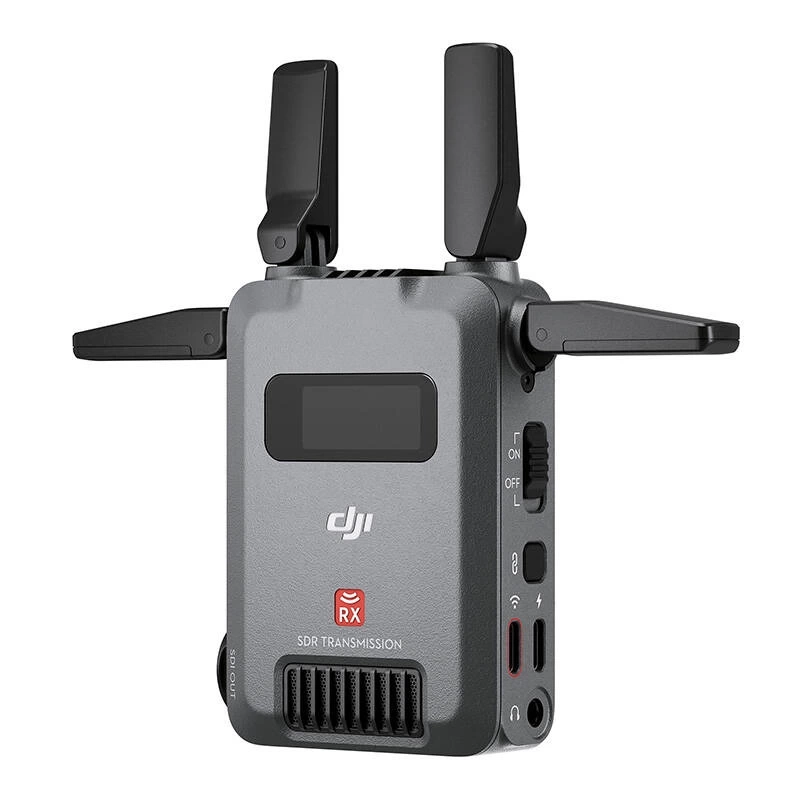

DJI SDR Transmission Receiver

Take your filmmaking to a new level of professionalism with the DJI SDR Transmission (RX) receiver. This reliable tool delivers the highest video transmission quality, stability, and versatility. With advanced features like low latency, multi-receiver support, and metadata transfer, your filmmaking will reach a new level of professionalism. Discover new possibilities with the DJI SDR Transmission receiver and enjoy complete control over your filmmaking.

Unmatched performance and versatility

The DJI SDR Transmission receiver can transmit signals to monitors via SDI/HDMI and also supports video monitoring via USB-C, allowing connection to a smartphone or tablet. It provides stable transmission over long distances of up to 3km, ensuring your footage is always smooth and clear. With a minimum latency of just 35ms, the receiver offers efficient real-time monitoring.

Compact and lightweight design

The receiver weighs only about 145g and has foldable antennas, making it much easier to store and transport. With a variety of mounting methods, it meets the wide requirements of filming, offering flexibility and convenience in every situation.

Advanced SDR Technology

The receiver utilizes Software-Defined Radio (SDR) technology, which ensures stable and interference-resistant video transmission. It supports 1080p at 60 fps and high-bandwidth transmission up to 20 Mbps, enabling seamless monitoring and collaboration on set.

Unlimited number of receivers

In Broadcast mode, each Transmission transmitter can connect to an unlimited number of receivers, allowing multiple crew members to monitor simultaneously. This is ideal for productions requiring close collaboration between different specialists. Please note: this kit does not include a transmitter.

Metadata Transfer and Voice Communication

The receiver supports metadata transmission from professional cinema cameras such as ARRI and RED via SDI, providing quick access to detailed shot information. Additionally, the system enables simultaneous voice communication between the transmitter and receiver, significantly simplifying on-set coordination.

DJI Ronin App Compatibility

The DJI SDR Transmission receiver is fully compatible with the DJI Ronin app, which extends its capabilities with advanced monitoring and control features. The app allows you to use tools such as LUTs, peaking, waveforms, and false color, ensuring professional image quality. Furthermore, local recording and playback features allow for instant verification of video footage. You can also manage transmission channels and monitor signal quality directly from the app, significantly simplifying coordination and control on set.

Included

Odbiornik DJI SDR Transmission (RX)

Kabel połączeniowy RX do telefonu (USB-C do USB-C, 22 cm)



Odbiornik

Weight Approx. 145g (including antennas)
Dimensions 86.5 x 64 x 32mm (L x W x H, including antennas)
Ports SDI output port, HDMI output port, 3.5mm stereo jack, USB-C port for software updates and video output, USB-C port for power supply
Operating Frequency SDR Operating Frequency Non-DFS Frequency Bandwidth: 2.4000-2.4835GHz; 5.725-5.850GHz; *5.8GHz is prohibited in some countries/regions. Please check your local regulations for more information.
Transmitter Power (EIRP)SDR: 2.4000-2.4835 GHz: < 30 dBm (FCC); < 20 dBm (SRRC / CE / MIC); 5.725-5.850 GHz: < 30 dBm (FCC); < 14 dBm (CE); < 23 dBm (SRRC);
Max. Throughput 20 MHz
Max. bitrate20 Mbps *Measured in Control mode with Broadcast mode disabled.
Power Consumption8.3 W *Measured at room temperature 25°C, connected in Control mode, from a distance of approximately 10m, in a 1T1R configuration, with Wi-Fi disabled, using PD power.
Power SupplyUSB-C Type 1 Power Supply: 9V, 2A (PD standard); USB-C Type 2 Power Supply: 6.8-17.2V DC; Power Supply via NP-F Battery: 6.8-8.4V;
Video Output Format1080p: 23.98/24/25/29.97/30/50/59.94/60FPS; 1080i: 50/50.94/60FPS (1080i resolution is not available in Broadcast mode); 720p: 50/59.94/60FPS;
Audio Output FormatPCM
Video Transmission SystemSDR
Video Transmission Latency80 ms *Measured during 1080p/60FPS video recording.
Video Encoding FormatH.264
Maximum Transmission Range3 km (FCC); 2 km (CE / SRRC / MIC); *Measured in Control mode with Broadcast mode turned off.
Operating Temperature-10°C to 40°C
