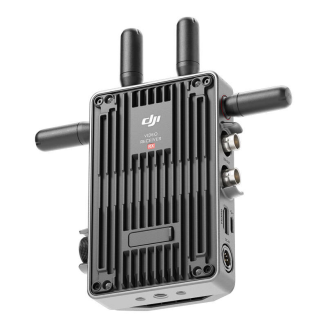

DJI Video Receiver

The DJI Video Receiver is compatible with the DJI Video Transmitter and, in this configuration, is ideal for filming. When used with a film camera such as an ARRI or RED, you can conveniently transmit metadata and output video at fractional frame rates. The device supports the O3 Pro system, allowing for 1080p/60FPS video transmission with a range of up to 4 km. Furthermore, you can connect an unlimited number of receivers to your transmitter (in Broadcast mode). The DJI Video Receiver is also compatible with DJI Master Wheels. Note: To use the DJI Video Receiver, you must have a DJI Video Transmitter.

12DJI/DJI-Video-Receiver/4

Almost limitless possibilities

The receiver supports metadata transmission via SDI, meaning you can conveniently send file names, timecodes, and camera settings to monitors and QTAKE. The DJI Video Receiver also enables real-time voice calls (one-to-one), facilitating communication between the cameraman and director. The device also offers two operating modes. Broadcast mode allows you to connect an unlimited number of receivers to the transmitter, allowing multiple teams to efficiently monitor work on set. Control mode, on the other hand, is suitable for remote control of the Ronin 2, DJI RS 3 Pro, and camera focus.

12DJI/DJI-Video-Receiver/1

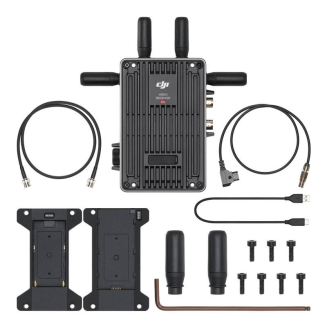

Included

  • DJI Video Receiver
  • NP-F Battery Adapter
  • WB37 battery adapter
  • Ronin x2 Video Transmission Antenna
  • USB-C cable
  • SDI cable
  • DC to P-TAP Power Cable
  • Mounting kit
Weight Okay. 350 g (without antennas)
Dimensions 127 x 87 x 26 mm (L x W x H, without antennas)
Operating Frequency

Frequency Response Non-DFS frequency response bands: 2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz; DFS frequency response bands: 5.250-5.350 GHz; 5.470-5.725 GHz; 5.725-5.850 GHz;

*In some countries and regions, the 5.1 / 5.2 / 5.8 GHz frequencies are prohibited or the 5.1 / 5.2 GHz frequencies are restricted to indoor use. For more information, please check your local regulations. The 5.600-5.650 GHz frequencies are not used.
Transmitter power (EIRP) 2.4000-2.4835 GHz: < 33 dBm (FCC); < 20 dBm (SRRC/CE/MIC); 5.725-5.850 GHz: < 33 dBm (FCC); < 14 dBm (CE); < 23 dBm (SRRC);
Max. Frequency Response 40 MHz
Max. bitrate40 Mbps
Energy consumption 9 W
Supply voltage 6-18V
Output Voltage Power output port: 6-18V
Working time Approx. 3 h 50 min *Tested at room temperature of 25°C while powered by the WB37 Intelligent Flight Battery and paired with the DJI Video Transmitter.
Video Format (Output) With DJI Video Transmitter: 1080p: 23.98/24/25/29.97/30/50/59.94/60FPS; 720p: 50/59.94/60FPS; With Ronin 4D: 1080p: 24/25/30/48/50/60FPS;
Audio format (input)Built-in SDI, built-in HDMI
Audio format (output) PCM
Video Transmission System O3 Pro
Video Delay 70 ms *Measured while recording 1080p/60FPS video.
Video Codecs H.264
Max. transmission range 6 m (FCC); 4 km (CE / SRRC / MIC); *Measured in an open environment, free from obstacles and interference.
Operating temperature From -10°C to 45°C
