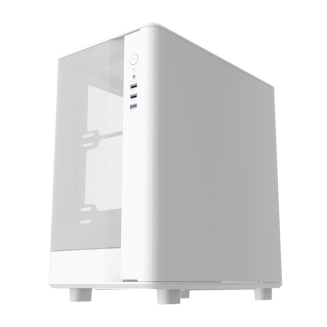

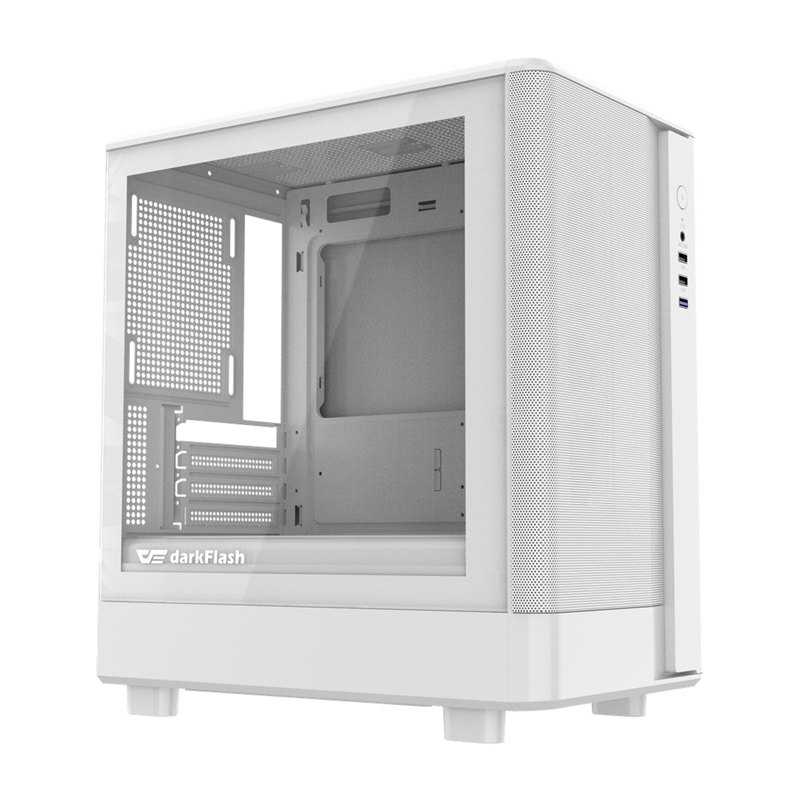

DARKFLASH DB330M Mesh Computer Case (White)

Darkflash DB330M Mesh Computer Case (White)

The Darkflash DB330M Mesh is a computer case designed for M-ATX and ITX motherboards. Its dimensions (368 x 218 x 400 mm) allow for a compact build with a graphics card up to 305 mm long and a CPU cooler up to 180 mm high. The design is based on a 0.5 mm SPCC steel frame and features a tempered glass panel and a mesh front for effective air or liquid cooling.

Efficient air cooling

The Darkflash DB330M Mesh case supports up to 7 fans: 2 in the front, 2 at the bottom, 2 at the top, and 1 at the rear. The top of the case allows for the installation of 120mm or 140mm fans, while the remaining locations only accommodate 120mm fans. This arrangement creates a vertical cooling channel that promotes natural airflow and effectively dissipates heat away from the components.

240mm Liquid Cooling

The Darkflash DB330M Mesh model allows for the installation of a water cooler up to 240mm long on the top. This allows you to install a powerful AIO system without having to compromise other components. The maximum air cooling height is 180mm.

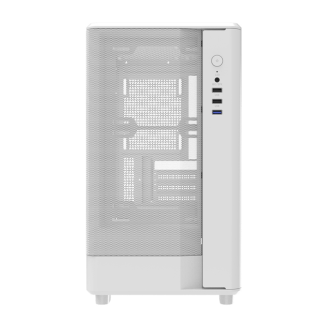

Mesh panel with filter

The front panel of the case is made of mesh, which improves airflow and also acts as a dust filter. Additional ventilation holes are also located on the top and bottom of the structure.

Space for longer GPUs

You can install a graphics card up to 305 mm long inside. The case offers four PCI slots, allowing for the installation of dual- and triple-slot cards. The power supply compartment and cable management space do not limit the GPU's length.

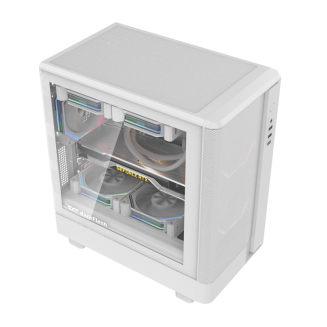

Glass side panel

The left panel is made of tempered glass, allowing you to showcase the computer's internals and RGB-backlit components. The panel can be easily removed without tools.

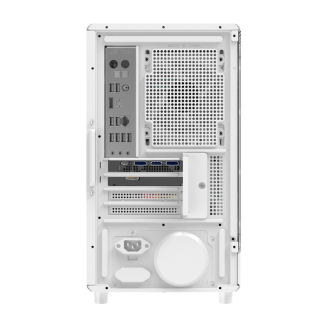

Separate space for cables and multiple ports

The rear of the case features contoured space and pass-through holes for neat cable routing. This layout simplifies component installation and improves airflow in the main compartment. The front panel houses a USB 3.0 port, two USB 2.0 ports, one HD Audio port, and the power button. This allows you to enjoy quick access to basic functions without having to reach to the back of the case.

ATX Power Supply Compatibility and Motherboard Support

The bottom of the case features space for a standard ATX power supply. This allows for the installation of full-power units without the space constraints typical of smaller cases. Furthermore, the Darkflash DB330M Mesh supports M-ATX and ITX motherboards, offering optimal conditions for building a home, office, or gaming PC. The absence of pre-installed fans allows for the customization of cooling components.
