DIN Energy Meter SHELLY Pro 3EM-3CT63 Wi-Fi
- Watch the product:
- Add feedback:
- Code: INN_50506
- Manufacturer: Shelly
- Availability: 1 working day
-
- 146.10 EUR
- szt.
BUY NOW AND CREATE YOUR DREAM HOME. DO IT NOW IN 3 SIMPLE STEPS.
Your purchases will be delivered by DPD Courier.
You can pay for your purchases with credit card or bank transfer using safe PayU system or bank transfer.
You've made a good choice. However, if you return the product within 14 days, you'll receive a full refund.
Shelly Pro 3EM-3CT63 WIFI 1/3-Way Energy Consumption Meter
In modern homes and businesses, effective energy management means not only savings but also convenience and greater environmental awareness. The Shelly Pro 3EM-3CT63 is a professional electricity meter that provides accurate, real-time power consumption data. With LAN, Wi-Fi, and Bluetooth support, it can operate independently within a local network or work with home automation systems. It's a versatile solution for businesses and home users who want to monitor and optimize energy consumption. Download the Shelly Smart Control app and take control!
Precise measurement and data storage
The Shelly Pro 3EM-3CT63 measures voltage, current, active power, and apparent power for each phase separately. Thanks to its 4-quadrant measurement, the meter is suitable for both standard installations and renewable energy systems. Data is stored in the device's memory for 60 days, and the built-in real-time clock ensures accurate event tagging, even in the event of an internet outage.
Easy to install and use
The device is designed for DIN rail mounting and supports both single- and three-phase installations. Measurement is performed using special current transformers, allowing for contactless energy consumption readings. By combining it with the Shelly Pro Add-on module (not included), you can control external contactors, enabling automatic load management.
Home and Business Applications
The Shelly Pro 3EM-3CT63 is an excellent solution for both homeowners and businesses. In home applications, it can be used to monitor energy consumption by electric vehicle chargers, photovoltaic systems, or the entire household. In businesses, it is a useful tool for managing power consumption in commercial buildings, manufacturing plants, and data centers, helping to optimize energy costs.
Advanced Integration and Automation
With support for KNX, Modbus, MQTT, and WebSocket, the Shelly Pro 3EM-3CT63 can be easily integrated with building management systems and smart homes. Data export in CSV and JSON formats simplifies energy consumption analysis, while scripting allows for the creation of custom automation tailored to individual user needs.
Free Shelly Smart Control App
Shelly Smart Control is a free app that allows you to fully manage your Shelly devices, monitor energy consumption, and control costs in real time. Thanks to its clear interface, you can track the operating parameters of individual devices, create automations, and receive notifications about energy anomalies. The app works on smartphones and computers, and access to Shelly Cloud allows you to remotely control your installation from anywhere.

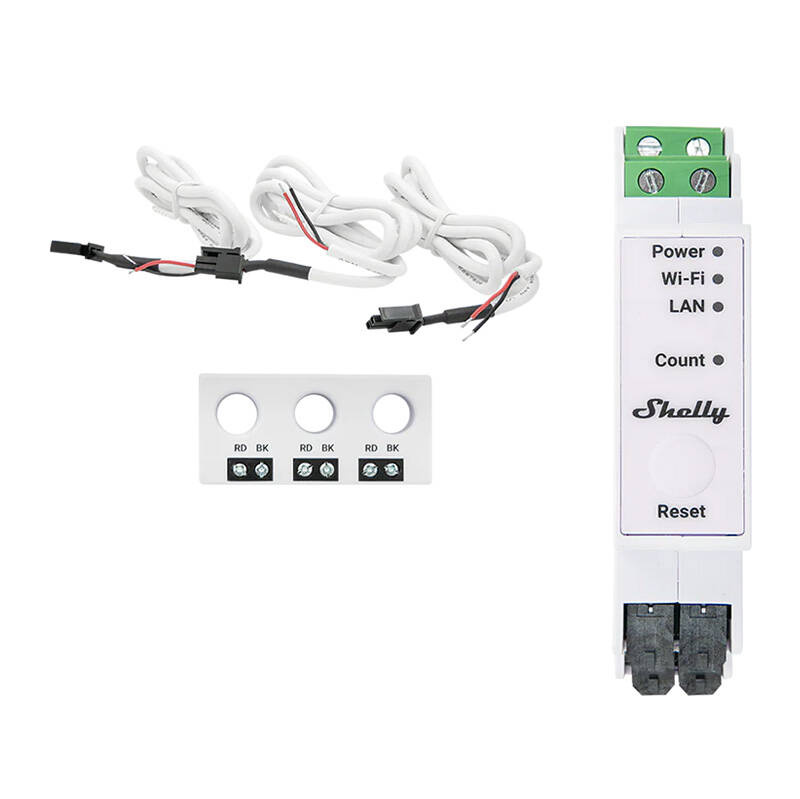

Included
- Shelly Pro 3EM-3CT63 Energy Meter
- Shelly 3CT63 3-Phase Current Transformer
- User Manual
| Manufacturer | Shelly |
|---|---|
| Manufacturer code | Pro3EM3CT63 |
| Dimensions | Shelly Pro 3EM-3CT63: 94 × 19 × 69 mm; Shelly 3CT63: 14 × 54 × 26 mm |
| Weight | Shelly Pro 3EM-3CT63: 62 g; Shelly 3CT63: 32 g |
| Installation | Shelly Pro 3EM-3CT63: DIN rail; Shelly 3CT63: Mounting on phase wires |
| Housing material | Plastic |
| Housing color | White |
| Operating temperature | -20°C to 40°C |
| Humidity | 30% - 70% RH |
| Maximum operating altitude | 2000 m |
| Power supply | 100-260 V AC, 50/60 Hz |
| Power consumption | < 3 W |
| External Protection | Circuit Breaker Characteristics: B or C, Maximum Rated Current: 16 A, Minimum Breaking Capacity: 6 kA, Energy Limitation Class: 3 |
| AC Voltage | 100 - 260 V (Accuracy ±1%) |
| AC Current | 0 - 63 A (Accuracy ±1% for 2 - 63 A, ±2% for 1 - 2 A, ±5% for 0 - 1 A) |
| Compatible Current Transformers | 3CT63 |
| Power Measurement | Active and Apparent |
| Measurement Energy | Active, Apparent, Power Factor |
| Minimum Load for Channel Calibration | 500 W |
| No-Load Threshold | 30 VA per channel |
| Data Storage | 60 days at 1-minute resolution |
| Data Export | CSV for PQ values, JSON via RPC |
| Wi-Fi | 802.11 b/g/n (2.4 GHz), RF power < 20 dBm |
| Range | up to 30 m indoors, up to 50 m outdoors |
| Bluetooth | 4.2, RF power < 4 dBm |
| Range | up to 10 m indoors, up to 30 m outdoors |
| Communication protocol | KNX, Modbus, MQTT, HTTP, WebSocket |
| Microcontroller | CPU: ESP32-D0WDQ6; Flash memory: 16 MB |
| Software features | Webhook support (20 with 5 URLs per action); Scripting capability (mjS); TLS encryption for incoming connections |
