DIY Avatto WSMD-4 32V Smart Switch Module

The Avatto WSMD-4 32V is a smart, four-channel DIY switch module that allows you to remotely control multiple devices simultaneously. With 2.4 GHz Wi-Fi and Bluetooth support, you can control lights, gates, pumps, blinds, and more without the need for separate controllers. It's the perfect solution for automation hobbyists and professional installers who want to expand their system with a versatile yet easy-to-configure device.

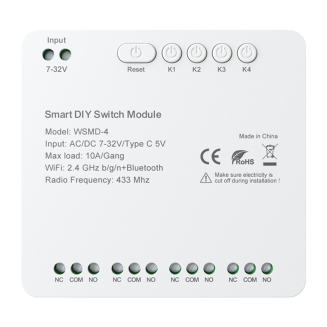

White Smart DIY Switch module with control buttons and NC/COM/NO connectors on a light background with a plant

Flexible Power and Capacity

The Avatto WSMD-4 32V module operates over a wide AC/DC voltage range of 7-32V or via a 5V USB-C port, making it exceptionally versatile. Each of the four channels can handle up to 10A, allowing you to safely connect a variety of devices. Built-in protection protects against overload and ensures stable operation in any installation.

Two white WiFi Switch modules with green connectors shown from the front and side on a beige background

Intuitive application control

Using the AVATTO, Tuya Smart, or Smart Life apps, users can easily manage each channel from their smartphone. Simply connect the module to their home Wi-Fi network, name individual switches, and set operating schedules. The app also offers automation features, device grouping, and integration with Amazon Alexa and Google Assistant voice assistants. If the Wi-Fi connection is interrupted, control is automatically restored via Bluetooth.

Smart DIY Switch WSMD-4 module with illuminated green LEDs at the control connectors

Manual and RF Control

Each channel of the WSMD-4 32V module can also be operated manually using built-in buttons. The device works with 433 MHz RF remote controls, which allow you to turn devices on and off locally without using an app. The pairing process is quick and simple—simply hold down the appropriate button on the remote, and the module will remember its code. The ability to assign different buttons to channels increases the convenience of use in everyday applications.

Perspective view of the WiFi smart switch module with CE and RoHS certificates

Quick setup and easy installation

Installing the Avatto WSMD-4 32V module doesn't require specialized tools. Simply connect the power supply, inputs, and outputs according to the markings on the housing, and then complete a short pairing process. The module is designed for DIY projects, home automation, and integration with IoT systems. Screw-type connectors simplify installation and device replacement without the need for soldering.

Comparison of two versions of the Smart DIY Switch module with 85-250V and 7-32V power supply with Reset and K1-K4 buttons

Included

  • Avatto WSMD-4 32V Smart Switch Module
  • User Manual
  • USB Type-C Power Cable



ManufacturerAvatto
ModelWSMD-4 32V
Type4-Channel DIY Smart Switch Module
Power SupplyAC/DC 7-32 V / USB Type-C 5 V
Maximum Load10 A per Channel
Wireless ConnectivityWi-Fi 2.4 GHz b/g/n + Bluetooth
Radio Frequency433 MHz (RF Remote)
Operating Temperature Range–10 °C ~ +40 °C
Application supportAVATTO / Tuya Smart / Smart Life
Voice controlAmazon Alexa, Google Assistant
CertificatesCE, RoHS
