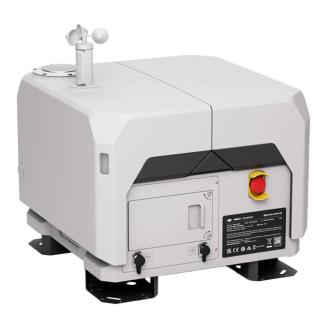

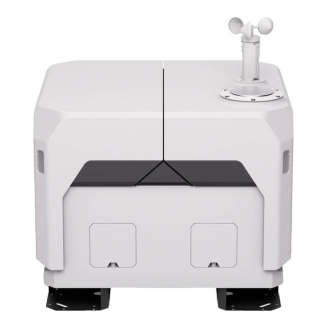

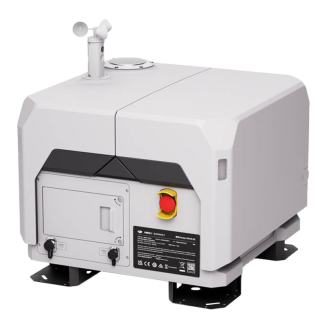

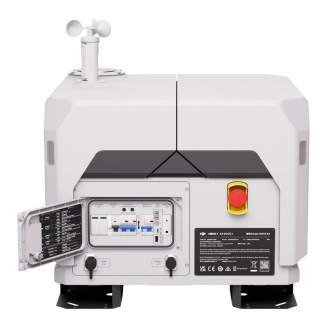

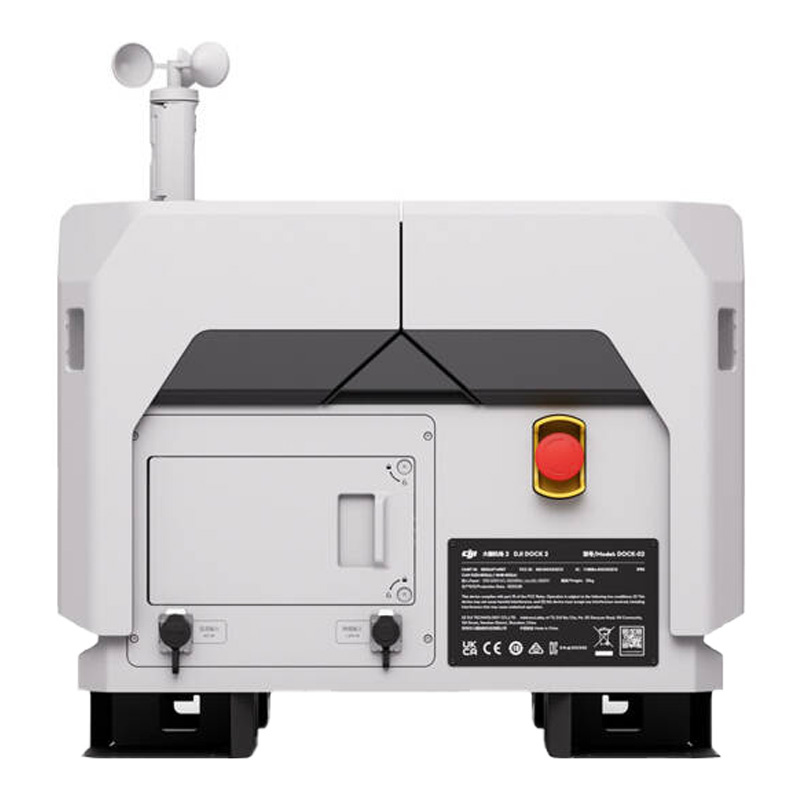

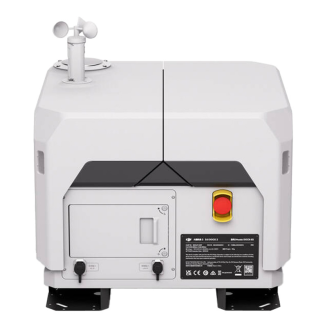

DJI Dock 2 docking station
- Watch the product:
- Add feedback:
- Code: INN_41687
- Manufacturer: DJI Enterprise
- Availability: 1 working day
-
- 8,555.12 EUR
- szt.
BUY NOW AND CREATE YOUR DREAM HOME. DO IT NOW IN 3 SIMPLE STEPS.
Your purchases will be delivered by DPD Courier.
You can pay for your purchases with credit card or bank transfer using safe PayU system or bank transfer.
You've made a good choice. However, if you return the product within 14 days, you'll receive a full refund.

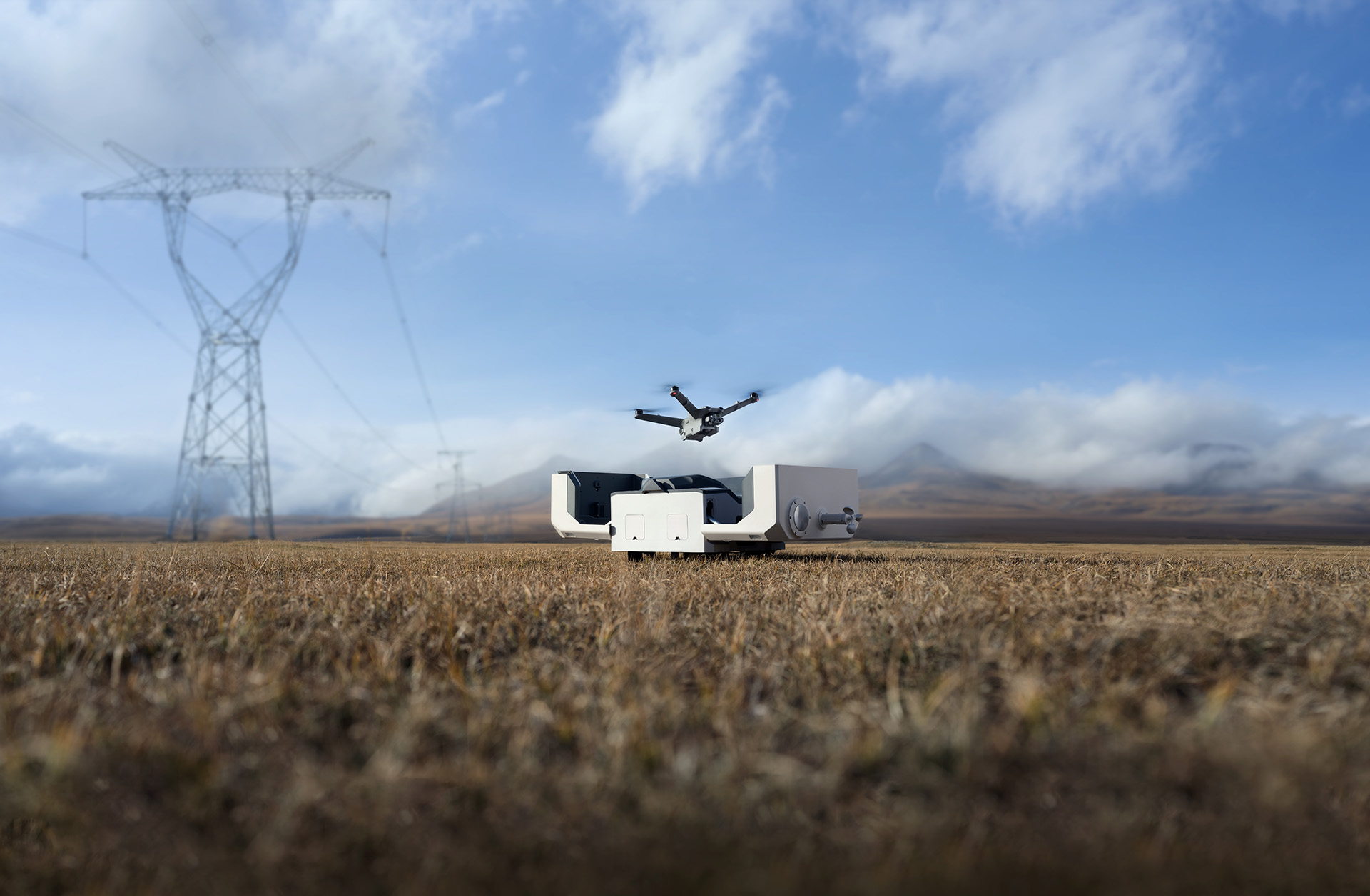

Autonomous Missions on a Whole New Level
DJI Dock 2 is a high-performance, hands-free platform equipped with the innovative Matrice 3D or Matrice 3TD drone.

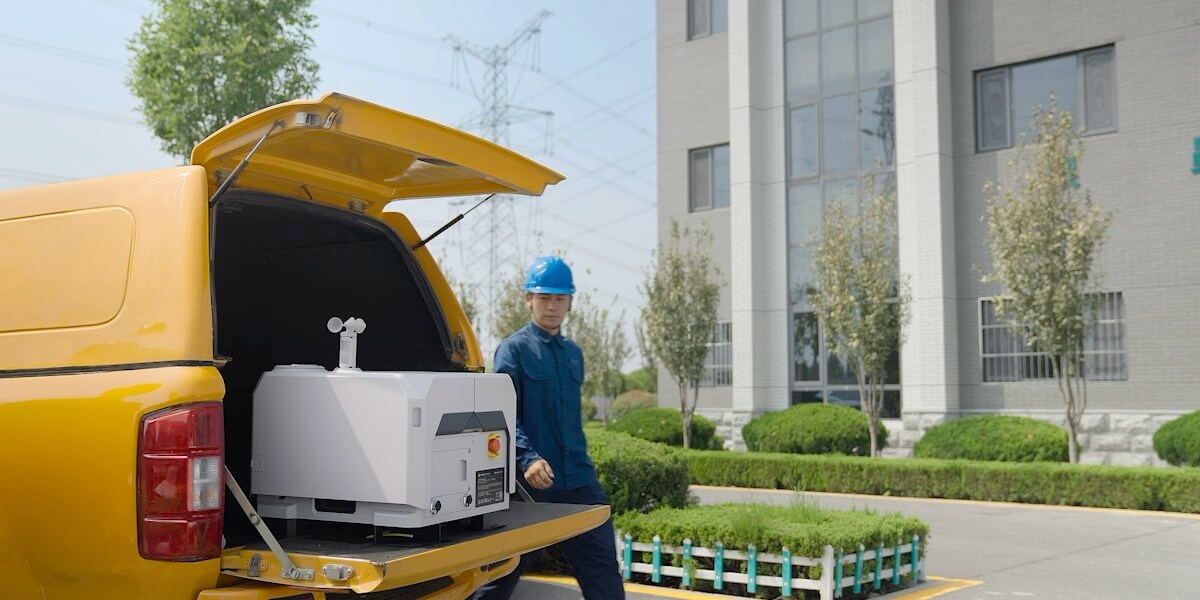

Ultralight construction
Compared to the previous generation, the size and weight of DJI Dock 2 have been reduced by 75% and 68% respectively, significantly improving installation flexibility.
Quick terrain analysis

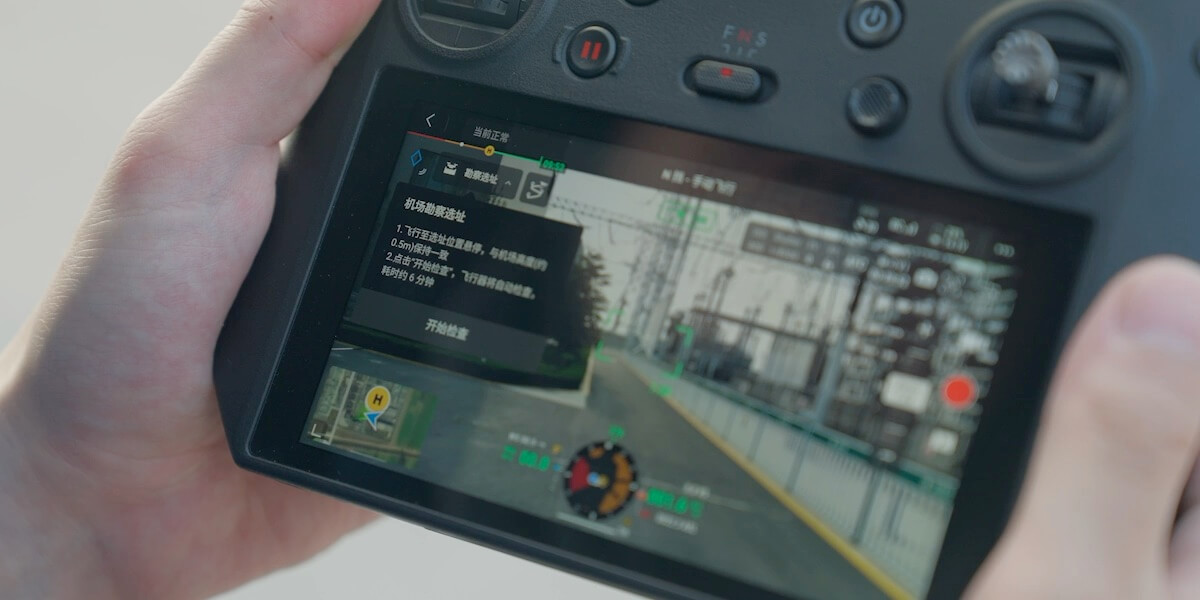

Before deployment, the drone can identify its surroundings using vision sensors and quickly determine whether the deployment area has good GNSS signals. Compared to the previous system, the new measurement system significantly speeds up site selection, reducing the required time from approximately 5 hours to 12 minutes.
Reliable operation, safety and readiness
DJI Dock 2 is not only lightweight and easy to deploy, but also offers enhanced operational capabilities. Thanks to intelligent cloud-based features, it significantly simplifies unattended missions, achieving a whole new level of operational quality and efficiency.

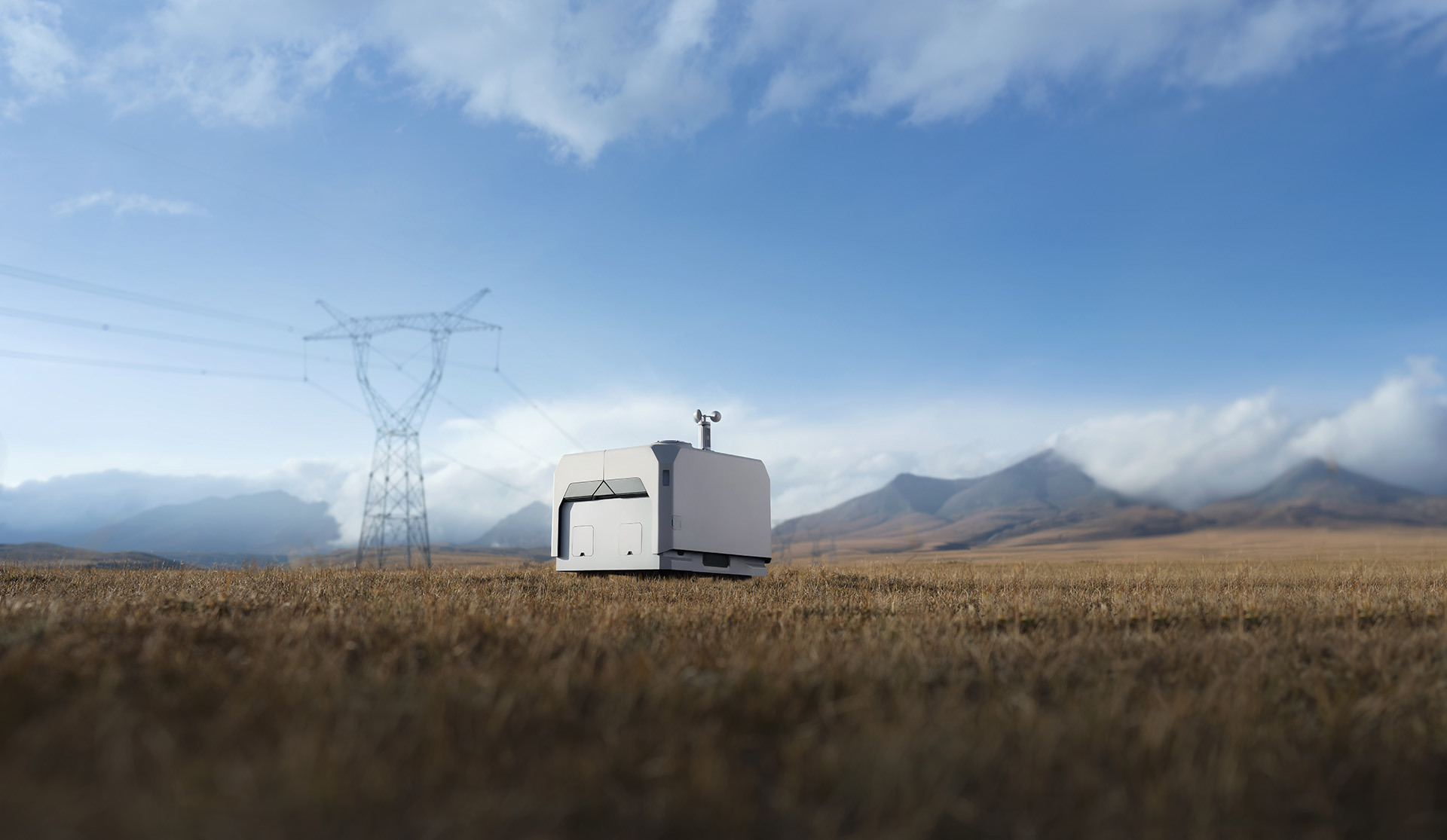

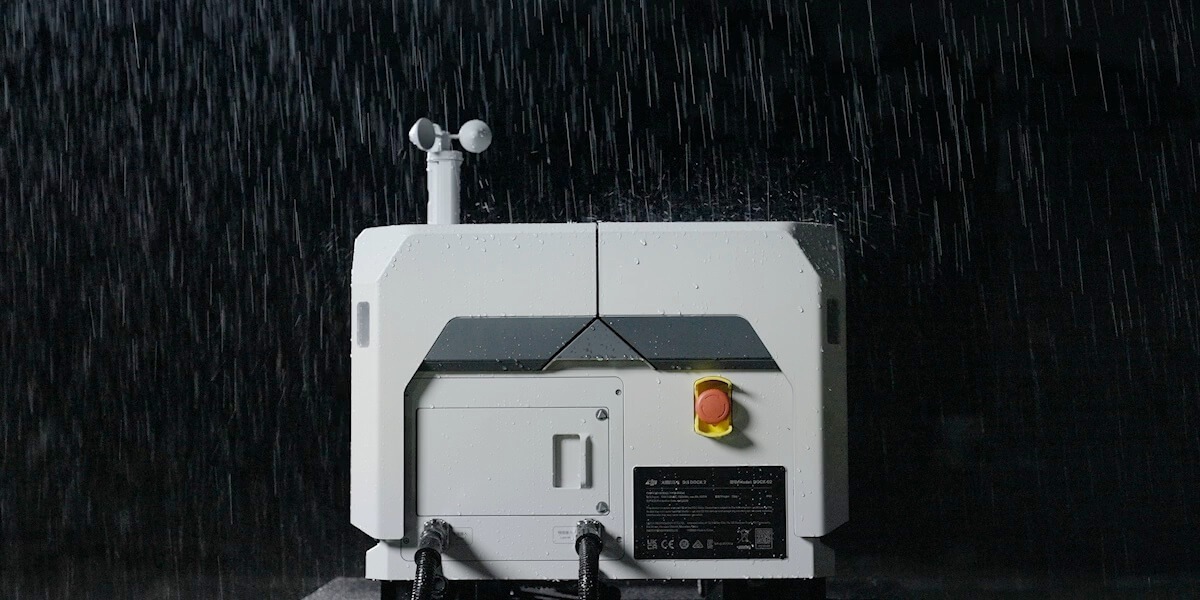

IP55 protection class
DJI Dock 2 features a highly ingress-resistant design, with dust and water resistance of the entire device reaching an IP55 rating [1]. The device can operate stably for long periods of time even in harsh climatic and environmental conditions.
Environmental Condition Monitoring System
DJI Dock 2 integrates sensors such as a rain sensor, anemometer, and thermometer that can detect weather changes in real time. Combined with online weather forecasts, Dock 2 can provide timely warnings or suspend planned flight missions, effectively reducing mission risks.
More stable landing

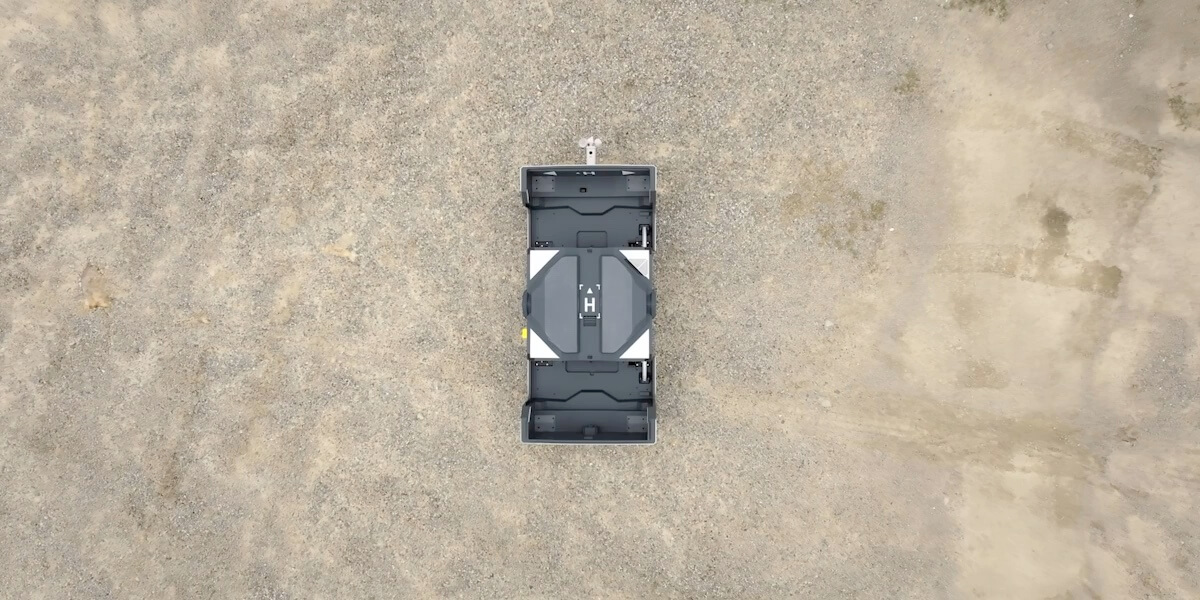

Thanks to next-generation image recognition technology, the drone can more accurately identify landing marks above the platform. Furthermore, the landing pad has been designed to further improve landing efficiency.

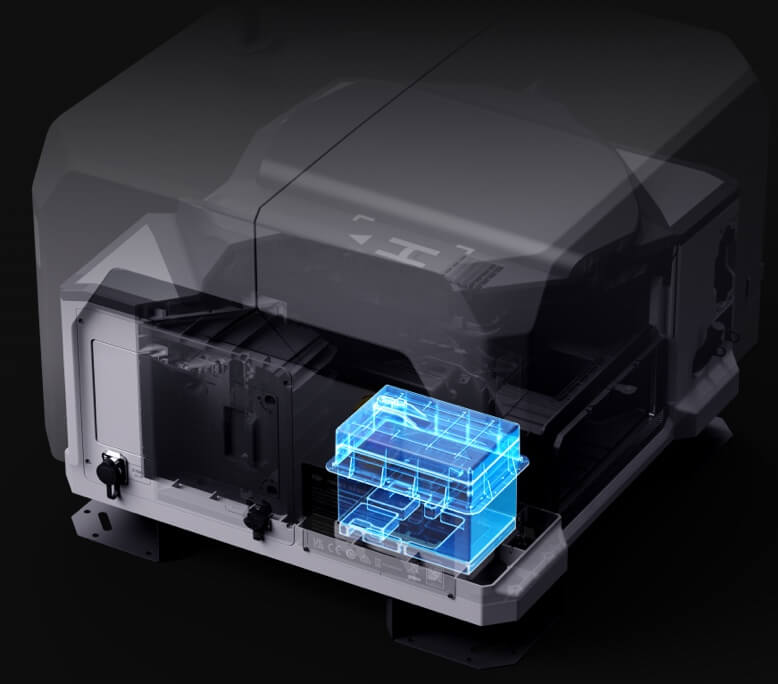

Built-in backup battery
In the event of an unexpected power outage, Dock 2 can continue to operate independently for over 5 hours using its built-in battery.
6-month inspection
Thanks to its highly protective and highly reliable design, Dock 2 only requires maintenance every 6 months.

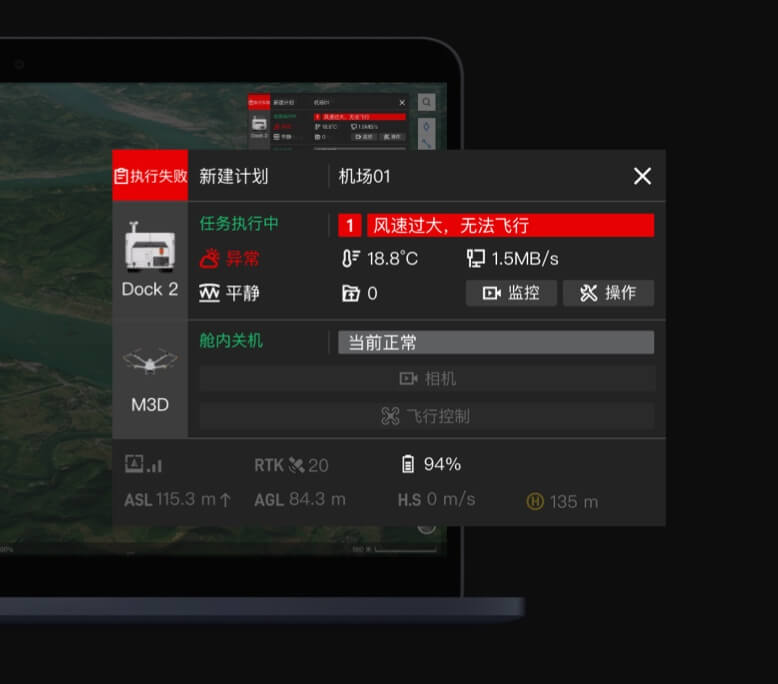

Exceptional Event Warnings
When a fault or emergency occurs on DJI Dock 2 or the aircraft, Dock 2 will send an email as soon as possible.
Kit contents:
- 1x DJI Dock 2
- 1x Anemometer
- 4x Anchor
- 1x Ethernet cable connector
- 1x Power Cable Connector
- 1x Screwdriver
| DOCKING STATION - GENERAL INFORMATION | |
|---|---|
| Total weight | 34 kg (without drone) Actual product weight may vary due to differences in materials and external factors. |

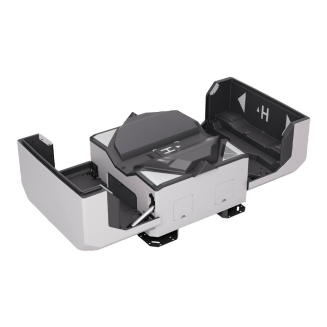

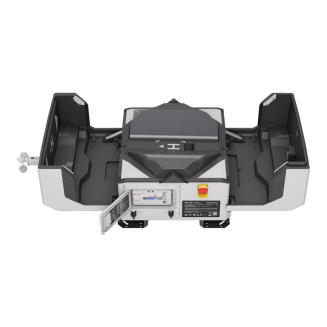

| Dimensions | Dock cover open: 1228×583×412 mm (L×W×H) Dock cover closed: 570×583×465 mm (L×W×H) The above data does not include the height of the wind speed meter (145 mm), but does include the height of the mounting base brackets (55 mm). |
| Input Voltage | 100-240V AC, 50/60 Hz |
| Input Power | Max 1000 W |
| Operating temperature | -25° to 45° C (-13° to 113° F) When the ambient temperature is lower than -20° C (-4° F), the docking station is in standby mode and the aircraft cannot perform flight tasks. |
| Protection Level | IP55 |
| Maximum Drone Count | 1 |
| Maximum allowable wind speed at landing | 8 m/s |
| Maximum operating altitude | 4000 m |
| RTK Base Station Frequency | Simultaneous reception: GPS: L1 C/A, L2 BeiDou2: B1l, B2l, B3l BeiDou3: B1l, B3l GLONASS: L1, L2 Galileo: E1, E5B |
| RTK Base Station Positioning Accuracy | Horizontal: 1 cm + 1 ppm (RMS) Vertical: 2 cm + 1 ppm (RMS) |
| DOCKING STATION - CHARGING EFFICIENCY | |
| Output Voltage | 28V DC |
| Loading time | 32 minutes Data was measured while charging the aircraft (power off) from 20% to 90% at 25°C (77°F). |
| DOCKING STATION - VIDEO TRANSMISSION | |
| Video Transmission System | O3 Enterprise |
| Operating frequency | 2.4000–2.4835 GHz 5.725–5.850 GHz |
| Transmitter power (EIRP) | 2.4GHz: < 33 dBm (FCC); < 20 dBm (CE/SRRC/MIC) 5.8 GHz: < 33 dBm (FCC); < 14 dBm (CE); < 23 dBm (SRRC) |
| DOCKING STATION - COOLING SYSTEM | |
| Operating Voltage | 28V DC |
| Cooling system type | TEC Air Conditioning |
| DOCKING STATION - EMERGENCY BATTERY | |
| Battery capacity | 12 Ah |
| Output Voltage | 12V |
| Battery Type | Lead-acid battery |
| Battery Life | > 5 hours Measured with a fully charged spare battery at 25° C (77° F). After a power outage, the base station does not support functions such as aircraft charging, air conditioning, dock cover heating, and wind speed gauge heating. Always check for malfunctions immediately. |
| DOCKING STATION - NETWORK ACCESS | |
| Ethernet Access | 10/100/1000Mbps Adaptive Ethernet Port |
| DOCKING STATION - SENSORS | |
| Wind Speed Sensor | Supported |
| Rain Sensor | Supported |
| Ambient temperature sensor | Supported |
| Water immersion sensor | Supported |
| Cabin temperature sensor | Supported |
| Cabin humidity sensor | Supported |
| DOCKING STATION - SECURITY CAMERA (OUTDOOR) | |
| Resolution | 1920×1080 |
| Field of View (FOV) | 151° |
| Auxiliary light | Auxiliary white light |
| DOCKING STATION - SECURITY CAMERA (INTERNAL) | |
| Resolution | 1920×1080 |
| Field of View (FOV) | 151° |
| Auxiliary light | Auxiliary white light |
| DOCKING STATION - LIGHTNING PROTECTION | |
| AC Power Port | 20 kA (rated), meets the protection level requirements of EN 61643-11 type 2 and IEC 61643-1 class 2 |
| Ethernet Port | 10 kA (total), meets the requirements for protection level EN/IEC 61643-21 category C |
| DOCKING STATION - SUPPORTED SOFTWARE | |

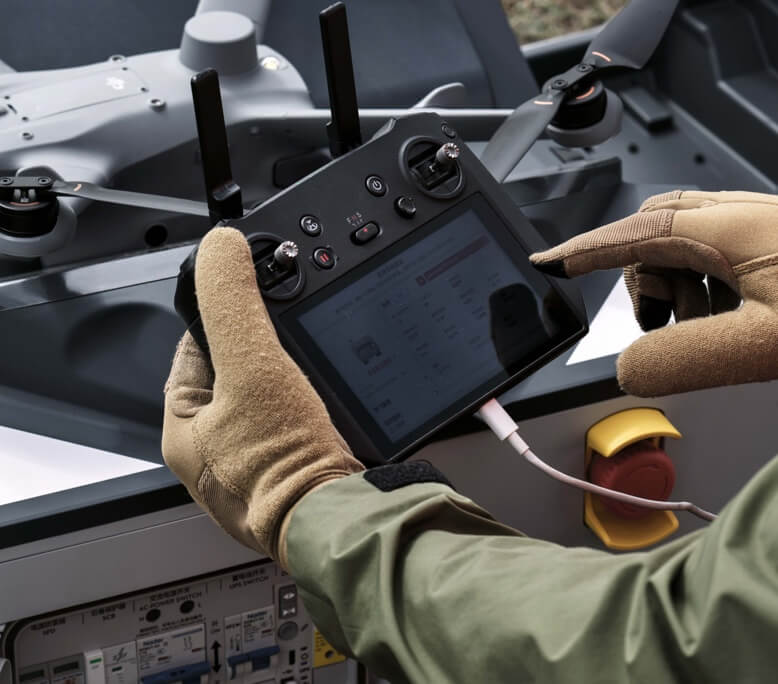

| Applications | DJI Pilot 2 (connects to DJI Dock 2 via DJI RC Pro Enterprise remote controller for installation and launch) |
| Cloud Platform | DJI FlightHub 2 (supported by default) Third-party cloud platforms (access via DJI Cloud API) |
| DOCKING STATION - EXPANDABLE | |
| Open Protocol | DJI Cloud API |
| Edge Computing | Supports data communication with external switches |
