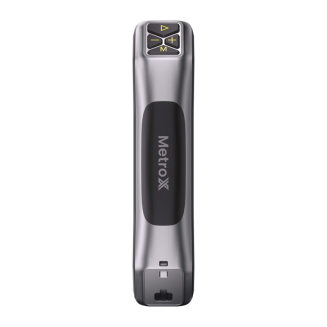

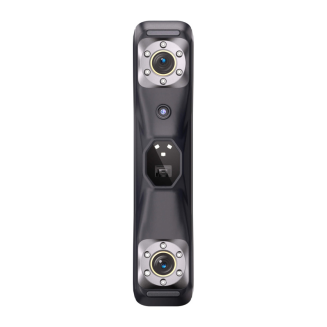

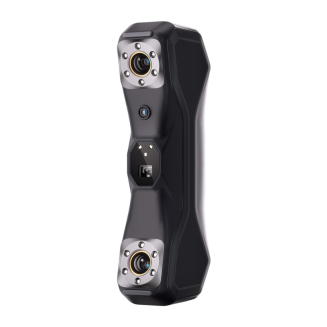

Revopoint MetroX Pro Advanced 3D scanner
The Revopoint MetroX Pro is an advanced 3D scanner that combines multi-line laser and structured light technology, offering precision down to 0.01 mm and accuracy down to 0.02 mm. Supporting four scanning modes, the device achieves speeds of up to 7,000,000 points per second in full-field mode and up to 2,000,000 points per second in laser mode. This allows it to quickly and accurately capture objects ranging in size from 10 x 10 x 10 mm to 1 x 1 x 1 m, making it a versatile tool for engineering and design applications. The Advanced version includes an additional set of markers.
Advanced technologies and precision measurements
The scanner utilizes a combination of Multi-line Laser Scan and Full-field Structured Light Scan technologies, allowing the user to tailor the operating mode to the specific task and surface type. The user has access to 30 blue cross laser lines, 15 parallel lines, and 62 lines of structured light, which translates into highly detailed imaging. This solution, combined with a precision of 0.01 mm and an accuracy of 0.02 mm, allows for the capture of even the finest details.
High efficiency and work flexibility
With support for GPU scanning and a frame rate of up to 60 FPS, the device enables fast data collection without quality loss. The scanner offers handheld and stationary modes, allowing you to adapt your workflow to the type of object and scanning conditions. Support for Feature, Marker, and Global Marker tracking methods increases stability and facilitates scanning of various surfaces.
Wide scanning range and ease of use
The device operates within a distance range of 200–400 mm, offering a field of view of 43 x 33°. At its closest distance, it captures an area of 160 x 70 mm, and at its maximum distance, 320 x 215 mm, allowing for convenient scanning of both smaller items and larger technical components. Its compact design, measuring 209 x 88 x 44 mm and weighing 508 g, facilitates transport and operation in a variety of environments.
Software and System Compatibility
The scanner works with Revo Metro software and allows you to stream images from your computer to mobile devices using Revo Mirror. It's compatible with Windows 10/11 (64-bit) and macOS 11.0 or later. Support for PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX formats allows for easy further processing of models and preparation for 3D printing.
Stable operation and components
The scanner is equipped with a quad-core ARM processor clocked at 2.0 GHz and a built-in depth map processing system, which translates into stable and smooth scanning performance. This allows the device to efficiently analyze data in real time, reducing delays and streamlining the entire 3D modeling process. The use of 12 blue LEDs further supports the optical system, improving the quality of recorded data and helping to reproduce details more accurately.
Included
- Scanner
- Tripod
- USB-C to USB-C cable
- Power supply
- Test scan model
- Markers (6 mm) × 500
- Swivel stand
- Wrist strap
- Carrying case
- Calibration board
- User manual
- Magnetic round markers x10
- Magnetic dome markers x10
- Magnetic pyramid markers x4
- Bar markers x4
| Manufacturer | Revopoint |
|---|---|
| Model | MetroX Pro Advanced |
| Scanning Type | Handheld or with Tripod |
| Technology | Multi-line Laser Scanning and Full-Field Structured Light Scanning |
| Scan Object Size | Small to Medium |
| Single Frame Accuracy (Max) | 0.01 mm |
| Single Frame Accuracy (Max) | 0.02 mm |
| Volumetric Accuracy | 0.02 mm + 0.04 mm × L (m), where L is the length Object Size |
| Minimum Point Distance | 0.05 mm |
| Working Distance | 200 ~ 400 mm |
| Scanning Area (Closest Distance) | 160 × 70 mm at 200 mm |
| Scanning Area (Farthest Distance) | 320 × 215 mm at 400 mm |
| Viewing Angle (Vertical × Horizontal) | 43 × 33° |
| Minimum Scanning Volume | 10 × 10 × 10 mm |
| Maximum Scanning Volume | 1 × 1 × 1 m |
| Scanning Speed (Max.) | 2,000,000 points/s (Multi-line Laser) / 7,000,000 points/s (Full Field) |
| Depth Camera Resolution | No Data |
| RGB Camera Resolution | 2 MP |
| Color Scanning | Only in Auto Rotating Stand Mode |
| Tracking Methods | Feature, Marker, Global Marker |
| Outdoor Scanning | No |
| 3D Light Source | 30 Blue Cross Laser Lines 15 Blue Parallel Laser Lines 62 Blue Structured Light Lines |
| Auxiliary Lighting | 12 Blue LEDs |
| White Flash LEDs | None |
| Positioning Sensors | None |
| Processor | 4-core ARM, 2.0 GHz |
| Built-in Processing | Depth Map Calculation |
| Internal Memory | None |
| RAM | None |
| Screen Touchscreen | None |
| Buttons | 4 |
| Compatible Operating Systems | Windows 10/11 (64-bit), macOS 11.0 or later |
| Output File Formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
| 3D Print Ready | Yes |
| Wi-Fi | None |
| Bluetooth | None |
| Connector Type | USB Type-C to Type-C |
| Power Supply | DC 12V, 3A |
| Battery | None |
| Scanner Weight | 508 g |
| Dimensions (L × W × H) | 209 × 88 × 44 mm |
