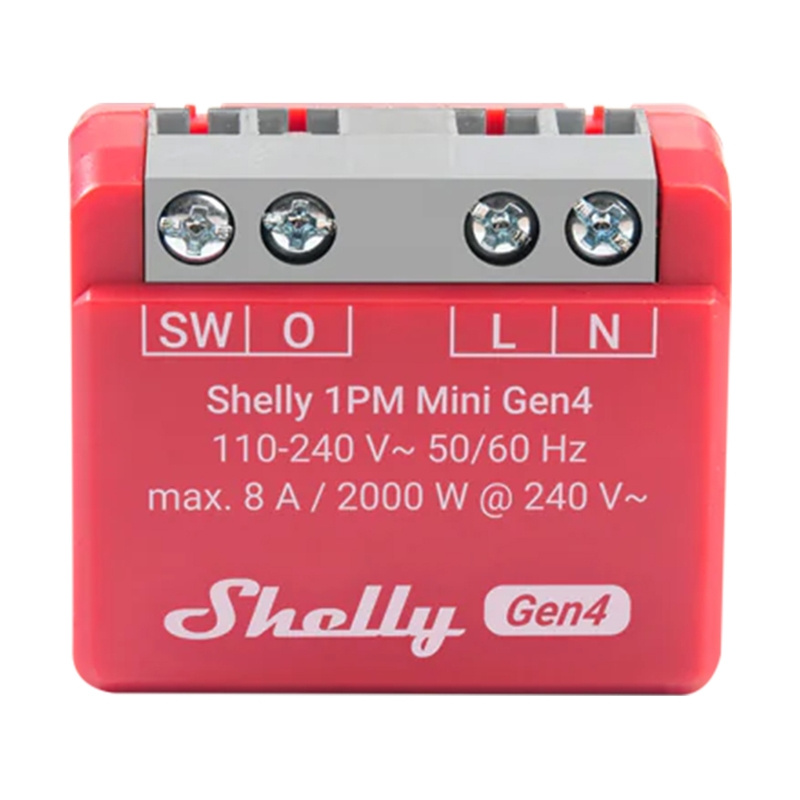

SHELLY 1PM Mini Gen4 Zigbee Matter Relay
- Watch the product:
- Add feedback:
- Code: INN_51924
- Manufacturer: Shelly
- Availability: 1 working day
-
- 23.17 EUR
- szt.
BUY NOW AND CREATE YOUR DREAM HOME. DO IT NOW IN 3 SIMPLE STEPS.
Your purchases will be delivered by DPD Courier.
You can pay for your purchases with credit card or bank transfer using safe PayU system or bank transfer.
You've made a good choice. However, if you return the product within 14 days, you'll receive a full refund.
Shelly 1PM Mini Gen4 Zigbee/Matter Driver
The Shelly 1PM Mini Gen4 controller enables remote control of electrical devices and precise measurement of their energy consumption. Supporting Wi-Fi, Zigbee, Bluetooth, and Matter, it can be easily integrated with various home automation systems. It works on a local network and via the cloud. The built-in web interface allows for configuration and monitoring without the need for additional software. Its compact size allows it to fit into standard junction boxes and can be mounted behind sockets or switches in areas with limited space.
Control and monitoring in one
Shelly 1PM Mini Gen4 works both as a transmitter and an energy consumption meter. This gives you not only the ability to remotely turn devices on and off, but also insight into actual power consumption. The power measurement function allows for precise analysis of connected devices and helps optimize energy costs. The device transmits data to the cloud or stores it locally, depending on user preferences.
Compatibility and ecosystem integrations
The device supports Zigbee, Wi-Fi, Bluetooth, and Matter protocols. It can be integrated into systems such as Google Home, Amazon Alexa, SmartThings, and KNX. The controller also supports MQTT, HTTPS, Web Hooks, UDP, and local APIs, enabling the creation of advanced scenarios and collaboration with other smart home components.
Programming, Schedules and Responses
The product allows you to create complex schedules and scenarios, with the ability to set up to 20 schedules and webhooks – each with up to 5 URLs. It also supports scripts written in Shelly Script, allowing you to automate actions based on time conditions, device status, or input data. You can also use virtual components, which increase the flexibility of system configuration.
Stability and security of operation
The Shelly 1PM Mini Gen4 is equipped with a range of protections, including overheating, overvoltage, overload, and overpower protection. Thanks to the ESP-Shelly-C68F microprocessor and 8MB of flash memory, the device ensures fast data processing and stable operation. Additionally, it can act as a repeater, boosting Zigbee or Wi-Fi signals in hard-to-reach places.
General
| Manufacturer | Shelly |
|---|---|
| Model | 1PMMiniGen4 |
Physical parameters
| Dimensions | 29 x 34 x 16 ± 0.5 mm / 1.34 × 1.11 × 0.63 ±0.02 in |
|---|---|
| Weight | 18 ±1 g / 0.63 ±0.04 oz |
| Maximum tightening torque of screw terminals | 0.4 Nm / 3.5 lbf.in |
| Wire Cross-Section | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and ferrules) |
| Wire Strip Length | 6 to 7 mm / 0.24 to 0.28 in |
| Mounting | Wall Box |
| Housing Material | Plastic |
| Housing Color | Red |
| Connector Color | Gray |
Environmental Conditions
| Operating Temperature | -20°C to 40°C / -5°F to 105°F |
|---|---|
| Operating Humidity | 30% to 70% RH |
| Maximum Altitude | 2000 m / 6562 ft |
Electrical parameters
| Power supply | 110–240 V AC |
|---|---|
| Relay | NO contact, 1-pole, µ contact |
| External protection | Tripping characteristic B or C, max. rated current 10 A, min. breaking capacity 6 kA, energy limiting class 3 |
Output circuit parameters
| Maximum switching voltage | 240 V AC |
|---|---|
| Maximum switching current | 8 A / 240 V AC |
| Power measurement | Yes |
| Overvoltage protection / cut-off | Yes |
| Overload protection / cut-off | Yes |
| Overpower protection / cut-off | Yes |
Sensors, counters
| Built-in internal temperature sensor | Yes |
|---|
Wi-Fi
| Protokół | 802.11 b/g/n |
|---|---|
| Pasmo RF | 2412 – 2472 MHz |
| Maksymalna moc RF | < 20 dBm |
| Zasięg | Do 30 m / 100 stóp wewnątrz i 50 m / 160 stóp na zewnątrz (zależy od warunków lokalnych) |
Bluetooth
| Protocol | 5.0 |
|---|---|
| RF Band | 2402 – 2480 MHz |
| Maximum RF Power | < 4 dBm |
| Range | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (depending on local conditions) |
Zigbee
| Protocol | 802.15.4 |
|---|---|
| RF Bands | 2400 – 2483.5 MHz |
| Maximum RF Power | < 20 dBm |
| Range | Up to 100 m / 328 ft indoors and 300 m / 984 ft outdoors (varies depending on local conditions) |
Jednostka mikrokontrolera
| CPU | ESP-Shelly-C68F |
|---|---|
| Pamięć Flash | 8 MB |
Możliwości oprogramowania układowego
| Harmonogramy | 20 |
|---|---|
| Webhooki (akcje URL) | 20, każdy z maks. 5 adresami URL |
| Skrypty | Tak |
| MQTT | Tak |
