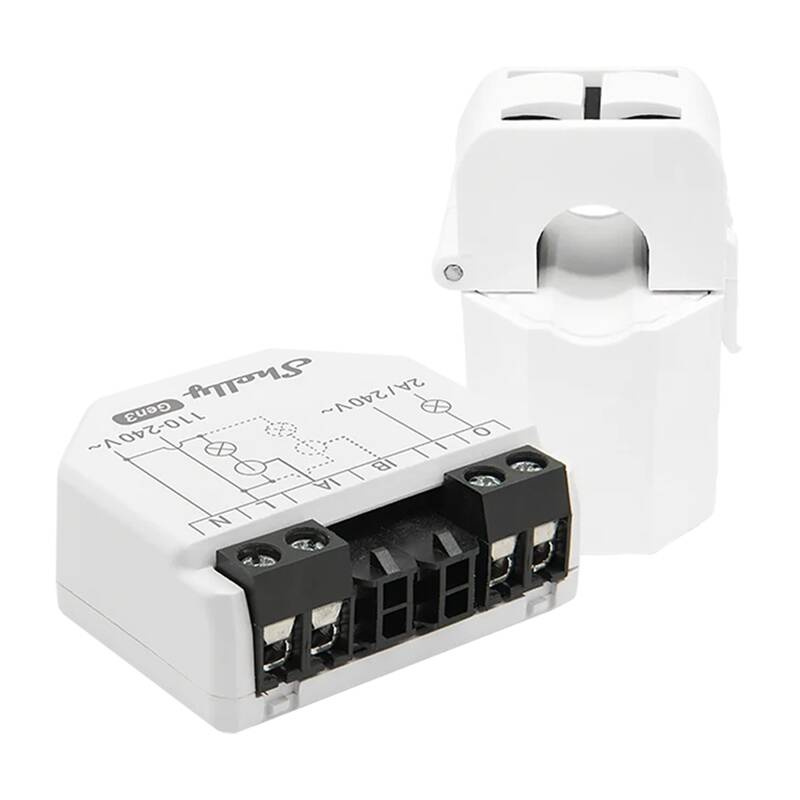

SHELLY EM Gen3 Energy Meter
- Watch the product:
- Add feedback:
- Code: INN_49853
- Manufacturer: Shelly
- Availability: 1 working day
-
- 80.24 EUR
- szt.
BUY NOW AND CREATE YOUR DREAM HOME. DO IT NOW IN 3 SIMPLE STEPS.
Your purchases will be delivered by DPD Courier.
You can pay for your purchases with credit card or bank transfer using safe PayU system or bank transfer.
You've made a good choice. However, if you return the product within 14 days, you'll receive a full refund.
Shelly EM gen3 Energy Measuring Controller
Shelly EM Gen3 is not only a precise energy monitor, but also a powerful tool for managing high-drain devices to optimize costs. With advanced features, easy installation, and innovative technology, this controller is the perfect solution for both single-phase homes and more demanding buildings. With the Shelly app, you can monitor your home's energy today – gain control, save money, and be more efficient!
Monitoring and optimizing energy consumption
The Shelly EM Gen3 controller is an advanced tool for intelligent energy management in your home. By precisely monitoring the power consumption of connected devices, it allows you to identify consumption patterns and optimize device operation. The device can be easily installed in standard electrical boxes, behind sockets or light switches, making it an ideal solution even for places with limited space. With Shelly EM Gen3, you can significantly reduce your electricity bills while ensuring efficiency and energy efficiency.
Wi-Fi and Bluetooth connectivity – full control without an additional HUB
The controller supports Wi-Fi and Bluetooth connections, allowing you to quickly and easily connect it to your home network without the need for additional devices. You can also use it as a Bluetooth gateway, providing greater flexibility in managing other devices.
Advanced Control Features
Shelly EM Gen3 offers the ability to connect to two current transformers without the need for additional wiring. Thanks to the built-in dry contact, you can control high-drain devices such as radiators, heat pumps, and jacuzzis. Furthermore, the smart scenes feature allows integration with other Shelly devices, opening the door to creating personalized energy-saving scenarios.
Local data storage and analysis
The controller saves data locally at minute intervals, storing it for up to 10 days without a cloud connection. After synchronizing with the cloud, the user has access to historical data from the last 365 days. This functionality allows for detailed analysis of long-term energy consumption and easy tracking of expenses.
Full scripting support and future-proof Matter technology
Shelly EM Gen3 fully supports scripting, enabling local control and customization. The device is designed with the future in mind – with double the memory of the Plus series and an advanced Shelly chip, it supports Matter upgrades and seamless integration with other devices. In the Shelly Smart Control app, you can create virtual devices, integrating third-party products into a cohesive management system.

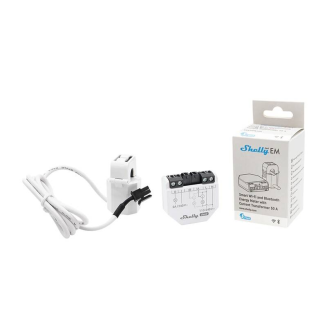

Included
- Energy metering controller
- Current transformer
- User manual
| Manufacturer | Shelly |
|---|---|
| Model | EM gen3 |
| Dimensions | 37 x 42 x 16 mm |
| Weight | EM Gen3: 23 g; CT 50A: 50 g |
| Maximum tightening torque for screw terminals | 0.4 Nm |
| Wire cross-section | 0.2 to 2.5 mm² (solid, stranded, wire-end ferrules) |
| Wire stripping length | 6 to 7 mm |
| Mounting | Wall bracket, electrical cabinet |
| Housing material | Plastic |
| Housing color | White, dark gray |
| Connector color | Black |
| Temperature Ambient Temperature | -20 °C to 40 °C |
| Ambient Humidity | 30% to 70% RH |
| Maximum Altitude | 2000 m |
| Voltage | 110 - 240 V~ 50/60 Hz |
| Power Consumption | < 1.2 W |
| External protection | 2 A, tripping characteristic B or C, breaking capacity 6 kA, energy limitation class 3 |
| Maximum voltage | 240 V~ |
| Maximum current | 2 A/240 V~ |
| Voltage range | 110-240 V~ 50/60 Hz |
| Voltage accuracy | ±2% |
| Current range | 0 - 80 A |
| Current accuracy | ±2% (2 - 50 A); ±2% (1 - 2 A); ±5% (0 - 1 A) |
| Compatible Current Transformers | CT 50A (included), CT 80A |
| Measurement Functions | Active and Apparent Power, Active and Apparent Energy, Power Factor, Fundamental Active and Reactive Energy |
| Channel-to-Channel Calibration - Minimum Load | 500 W |
| No-Load Threshold | 30 VA per channel |
| Data Storage | At least 10 days with 1 minute resolution |
| Data Export | CSV for PQ values, JSON via RPC |
| Temperature Sensor Indoor | Yes |
| WiFi Protocol | 802.11 b/g/n |
| Wi-Fi RF Band | 2412 - 2472 MHz |
| Wi-Fi Maximum RF Power | < 20 dBm |
| Wi-Fi Range | Up to 30 m indoors and 50 m outdoors (depending on conditions) |
| Bluetooth Protocol | 4.2 |
| Bluetooth RF Band | 2402 - 2480 MHz |
| Bluetooth Maximum RF Power | < 4 dBm |
| Bluetooth Range | Up to 10 m indoors and 30 m outdoors (depending on conditions) |
| Processor | ESP-Shelly-C38F |
| Flash Memory | 8 MB |
| Scheduling | Yes |
| Webhooks (URL Actions) | 20 with 5 URLs per webhook |
| Scripting | Yes |
| MQTT | Yes |
| Encryption | Yes (transport level) |
| Authentication | Yes (transport level) application and transport) |
| Dedicated application | Shelly Smart Control |
