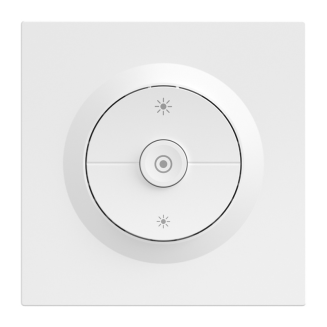

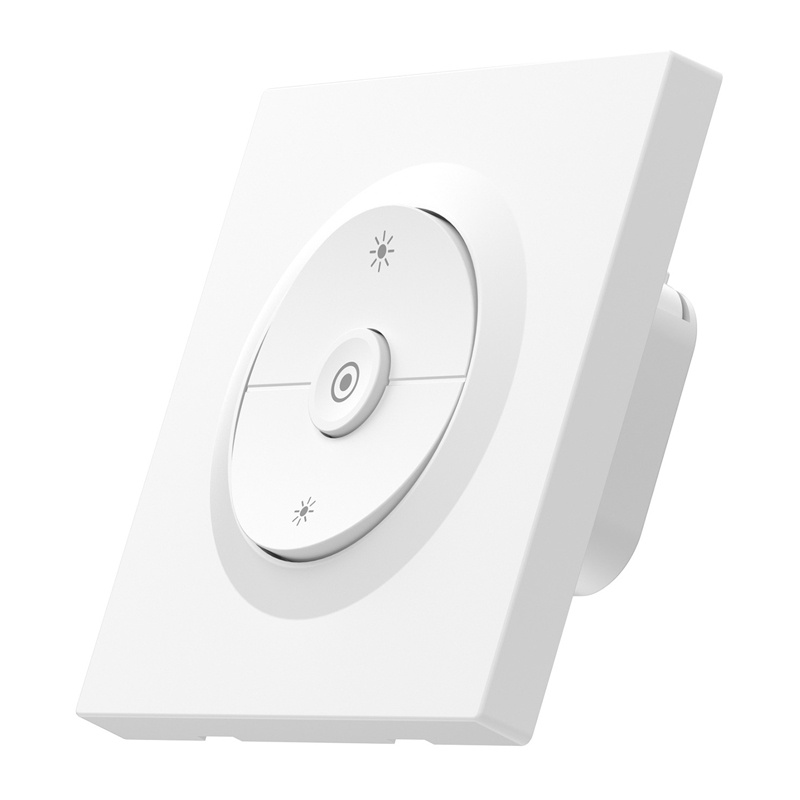

SONOFF MINI-ZBDIM-E ZigBee Smart Wall Switch/Dimmer

SONOFF MINI-ZBDIM-E ZigBee Smart Wall Switch/Dimmer

SONOFF MINI-ZBDIM-E is a smart switch operating in the ZigBee 3.0 standard, designed for smooth lighting regulation from 0-100%. It allows you to create scenes, schedules, and monitor energy consumption. Thanks to its ZigBee router function, it not only controls the lights but also boosts the signal throughout the entire smart home network, improving its stability.

Stable ZigBee 3.0 communication and the role of the router

The device operates according to the IEEE 802.15.4 (ZigBee 3.0) standard and acts as a router within the network. This means it forwards the signal, increasing the range and reliability of communication between devices. This is especially important in larger apartments and houses, where the signal must pass through several rooms. The switch works with eWeLink gateways such as ZBBridge-P, ZBBridge-U, NSPanel Pro, and iHost. It can also be integrated with Home Assistant via ZHA or Zigbee2MQTT using SONOFF series dongles.

Smooth dimming and comfort of use

The MINI-ZBDIM-E allows for full brightness adjustment from 0 to 100%, allowing you to precisely match the light to the situation. Furthermore, trailing-edge dimming increases compatibility with modern light sources and reduces flicker. The device also supports automatic calibration, making it easier to adapt to a specific load.

Wide lighting compatibility

The dimmer works with a variety of light sources. It supports dimmable LEDs up to 200 VA, incandescent and halogen bulbs up to 400 W, and dimmable electronic transformers up to 200 W. This makes it suitable for use in most home lighting installations. Note: This product is not intended for use with fluorescent lamps, LED strips, or inductive loads such as fans.

Monitoring energy consumption

The built-in power measurement function allows you to monitor the current energy consumption of connected lighting. You can check current operating parameters in the app, which facilitates informed energy management and adjusting the brightness level to actual needs.

Scenes, Schedules, and Voice Control

The device allows you to create smart scenes and schedules that automatically adjust lighting based on the time of day or other system events. You can set the lights to automatically dim in the evening or turn on at a specific time. Voice control via Amazon Alexa or Google Assistant is also available, as well as remote management via the eWeLink app.

Safety and durability

The device is equipped with overheating, overload, and overcurrent protection. The housing is made of flame-retardant PC material, and the entire unit meets CE and RoHS standards. The relay is designed for long-term and stable operation, which translates into greater reliability in everyday use.

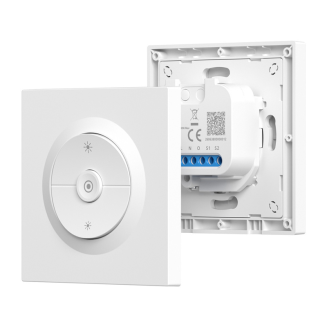

Standard assembly and compact dimensions

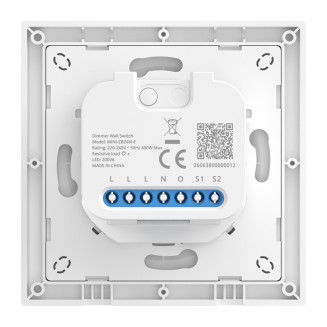

The dimmer is designed for use in 220-240 V ~ 50 Hz installations and requires a neutral wire. It fits Type 86 and European 60 mm round boxes. The compact design facilitates installation in both new installations and when retrofitting existing equipment.

Included

• smart switch
• screws x4
• user manual
