DJI Dock 3
Pierwsza stacja dokująca przystosowana do montażu w pojazdach.
Pełna kontrola w każdych warunkach
DJI Dock 3 is a durable and reliable device with an IP56 rating that can withstand even extreme wind conditions of up to 12 ms and temperatures from -30°C to 50°C, ensuring unparalleled performance and reliability in any environment.
Easy to implement, stable data transmission

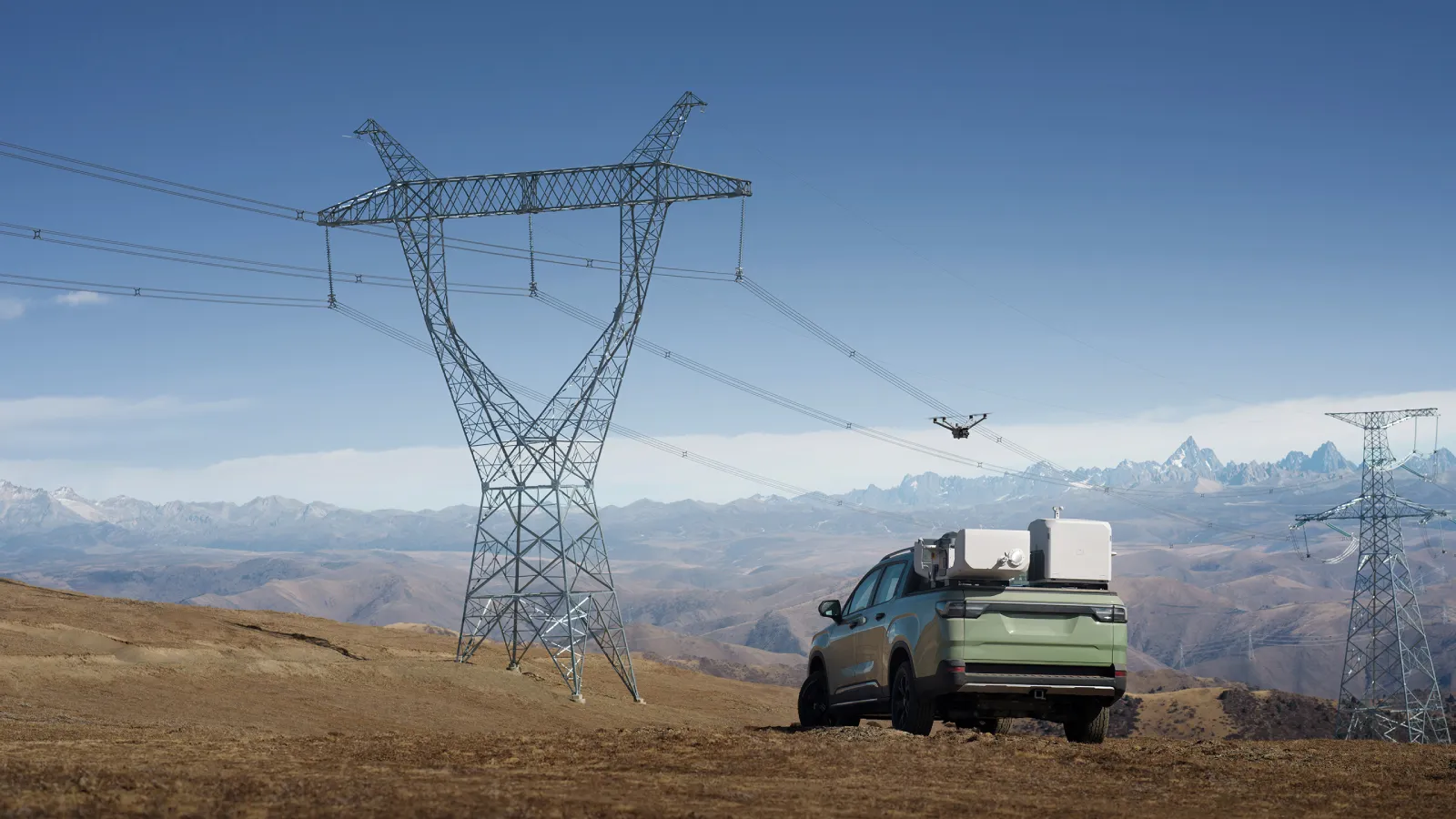

DJI Dock 3 revolutionizes drone operations by offering rapid deployment, including vehicle mounting, advanced D-RTK 3 Relay technology for improved signal quality, and easy setup via smartphone, resulting in unparalleled efficiency for long-range missions and inspections.

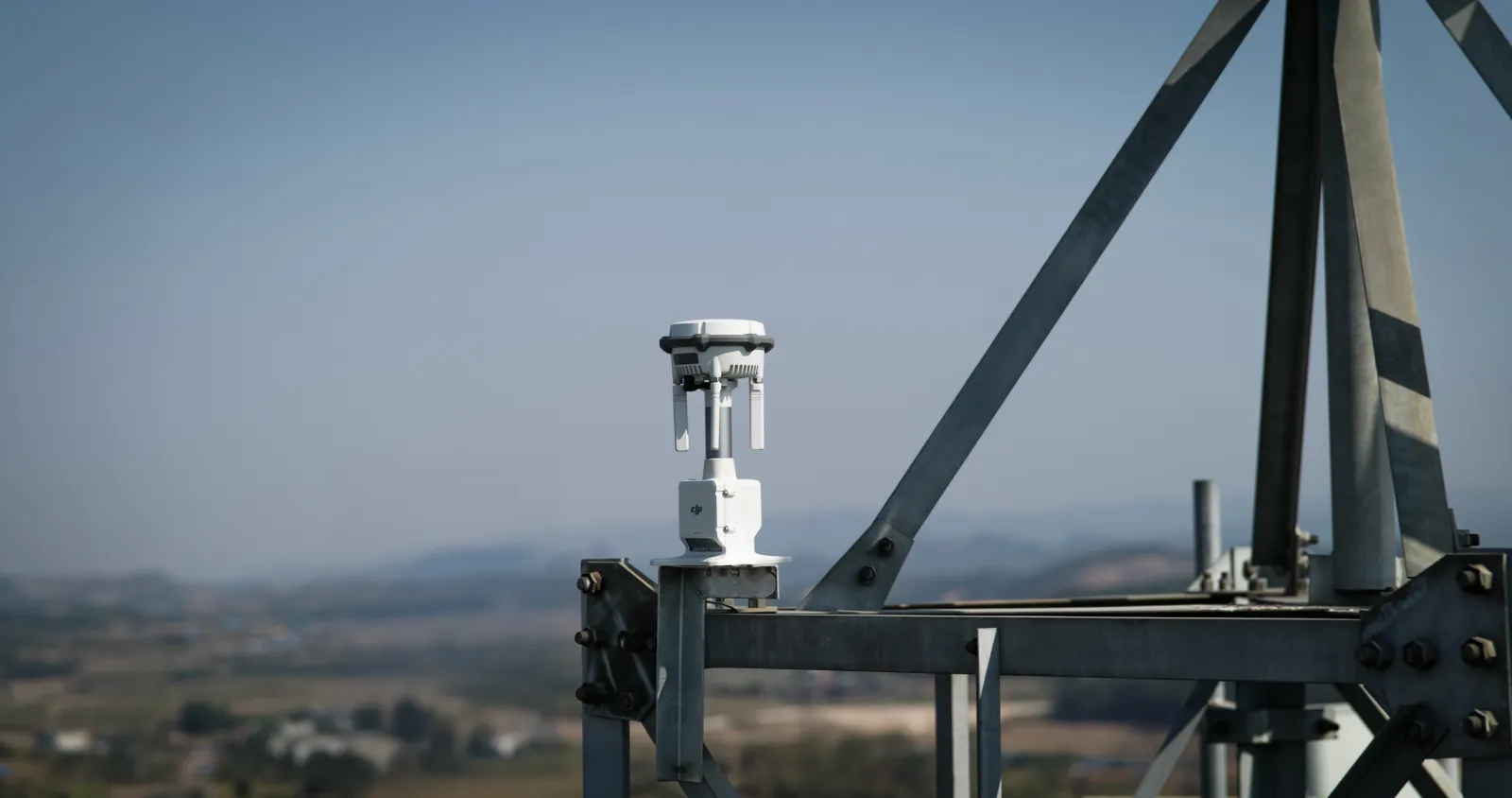

Stationary installation of the D-RTK3 module
The new D-RTK 3 Relay Fixed Deployment revolutionizes video transmission and satellite positioning by enabling flexible deployment of the DJI Dock 3, delivering unparalleled performance at distances of up to 25 km in challenging terrain.
The new DJI Matrice 4D series drone line
Discover the revolutionary DJI Matrice 4D and 4TD drones, built specifically for DJI Dock 3, offering unparalleled performance, advanced camera systems, and versatile applications – from precision mapping to critical public safety missions.
LiDAR Obstacle Detection
The optional obstacle detection module combines LiDAR technology with electromagnetic waves ranging from 1 to 10 mm, providing precise avoidance of small obstacles such as high-voltage cables at speeds up to 15 m/s, ensuring operational safety in complex environments such as power grid and substation inspections.
Clarity and precision in every task, at any time
The revolutionary Matrice 4D Series drones offer breakthrough precision positioning and low-light surveillance capabilities, providing unparalleled operational capabilities at any time of day or night.
Stable image over long distances
Matrice 4D Series drones, equipped with advanced telephoto cameras with foreground stabilization, revolutionize remote inspections by enabling precise defect detection and unprecedented data capture.
Precise geodetic measurements
Matrice 4D Series drones offer advanced oblique and orthophotography capabilities, along with intelligent flight path planning, providing unparalleled efficiency and detail in terrain modeling.
Hassle-free connectivity in mountainous terrain
The innovative Matrice 4D series of drones, equipped with advanced DJI Relay technology, significantly expands range and operational capabilities, enabling seamless search and rescue missions and inspections even in complex terrain.
| GENERAL | |
|---|---|
| Model | DJI Dock 3 |
| Gross Weight | 55 kg (without drone) |
| Dimensions | Open lid: 1760×745×485 mm (L×W×H) Closed lid: 640×745×770 mm (L×W×H) |
| Input Voltage | 100-240V (AC), 50/60 Hz |
| Input Power | Max 800 W |
| Operating temperature | -30° to 50° C |
| Protection Level | IP56 |
| Number of drones that can be accommodated | 1 |
| Maximum allowable wind speed at landing | 12 m/s |
| Maximum operating altitude | 4500 m |
| RTK base station frequency | Simultaneous reception: GPS: L1 C/A, L2, L5 BeiDou: B1l, B2l, B3l, B2a, B2b, B1C GLONASS: F1, F2 Galileo: E1, E5a, E5b, E6 QZSS: L1, L2, L5 |
| RTK base station positioning accuracy | Horizontal: 1 cm + 1 ppm (RMS) Vertical: 2 cm + 1 ppm (RMS) |
| LOADING PARAMETERS | |
| Output voltage | 35V DC |
| Loading time | 27 minutes |
| VIDEO BROADCAST | |
| Operating frequency | 2.400-2.4835 GHz 5.150-5.250 GHz (CE: 5.170-5.250 GHz) 5.725-5.850 GHz |
| Antenna | Built-in 9 antennas, 2T4R, supports smart switching function |
| Transmitter Power (EIRP) | 2.4 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC) 5.2 GHz (CE: 5.170-5.250 GHz): < 23 dBm (FCC/CE) 5.8 GHz: < 33 dBm (FCC); < 14 dBm (CE); < 30 dBm (SRRC) |
| COOLING SYSTEM | |
| Operating Voltage | 48V DC |
| Type | Cooling system with compressor |
| EMERGENCY BATTERY | |
| Capacity | 12 Ah |
| Output voltage | 12V |
| Cell type | Lead-acid battery |
| Working time | 4 hours |
| NETWORK ACCESS | |
| Ethernet | 10/100/1000 Mbps Adaptive Ethernet Port |
| 4G | DJI Cellular Dongle 2 required |
| SENSORS | |
| Wind speed sensor | Yes |
| Rain sensor | Yes |
| Ambient temperature sensor | Yes |
| Water immersion sensor | Yes |
| Temperature sensor in the housing | Yes |
| Humidity sensor in the housing | Yes |
| SECURITY CAMERA (OUTDOOR) | |
| Resolution | 1920x1080 |
| Field of View (FOV) | 151° |
| Auxiliary light | White |
| SECURITY CAMERA (INTERNAL) | |
| Resolution | 1920x1080 |
| Field of View (FOV) | 151° |
| Auxiliary light | White |
| LIGHTNING PROTECTION | |
| AC Power Port | 20 kA (rated), meets the requirements of EN 61643-11 Type 2 and IEC 61643-1 Class 2 protection level |
| Ethernet port | 10 kA (total), meets the requirements of EN/IEC 61643-21 for category C protection level |
| SUPPORTED SOFTWARE | |
| Applications | DJI Enterprise app (used with Android phones for deployment and launch) |
| Cloud Platform | FlightHub 2 FlightHub 2 On-Premises Version FlightHub 2 FlightHub Sync DJI Cloud API |
| EXPANDABILITY | |
| Edge Computing | Supports data communication with external network switches |
