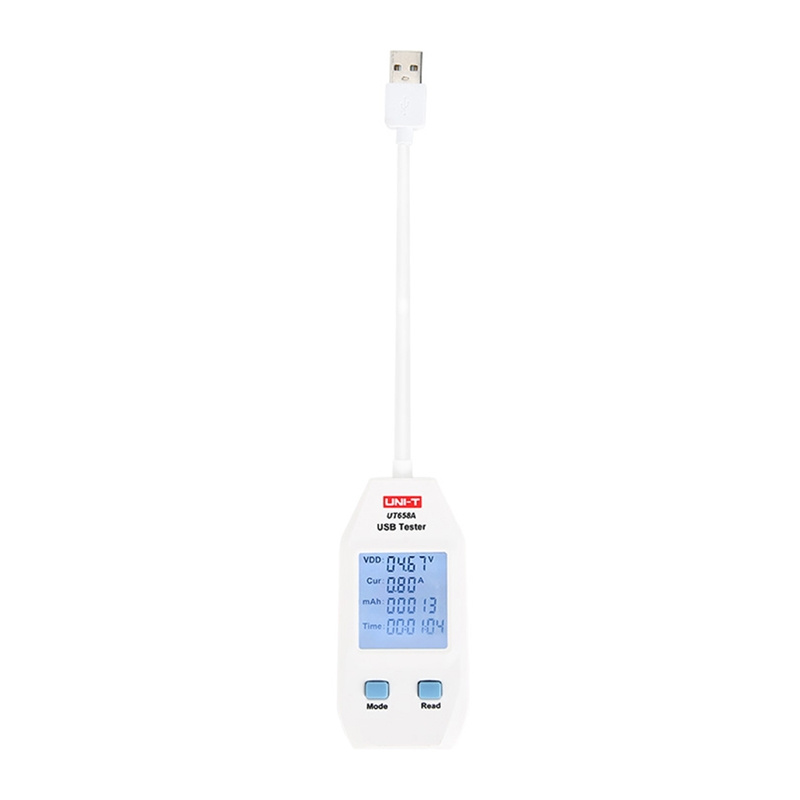

Tester USB Uni-T UT658A
The Uni-T UT658A is a USB tester designed for checking the parameters of chargers, power banks, USB Type-A cables, and other power devices. The device measures voltage in the range of 4-24 V DC, current from 0.05 to 3 A DC, capacity up to 99,999 mAh, energy up to 1000 Wh, equivalent circuit resistance from 1 to 480 Ω, and D+ and D- data line voltages up to 3.3 V, allowing you to quickly assess the power quality and condition of the device under test. This model supports USB Type-A ports, USB 2.0 and 3.0 standards, and QC 3.0 fast charging. Additionally, it can record 10 data sets and log measurements for up to 99 h 59 min 59 s with 1 second resolution. Simultaneous viewing of the most important parameters on the screen makes it easier to analyze the results, and the small dimensions of 93 × 45 × 13 mm and weight of 50.6 g make the device convenient for everyday use and easy to carry.
Included
- USB Tester
- User Manual
Specification
| Manufacturer | Uni-T |
|---|---|
| Model | UT658A |
| Type | USB Tester |
| Input and Output Ports | USB Type A |
| Data and Charging Protocol | 2.0 / 3.0 |
| Voltage Range | 4~24V DC |
| Voltage Resolution | 0.01V |
| Current Range | 0.05~3A DC |
| Resolution Current | 0.01A |
| Capacity | 0~99999mAh |
| Capacity Resolution | 1mAh |
| Energy | 0~1000Wh |
| Equivalent Circuit Resistance Measurement | 1~480Ω |
| USB D+ Data Cable Voltage | 0~3.3V |
| USB D- Data Cable Voltage | 0~3.3V |
| Data Storage | 10 Sets |
| Maximum Recording Time | 99h 59min 59sec |
| Time Resolution | 1s |
| Fast Charging Protocol | QC 3.0 |
| Color | White |
| Weight | 50.6g |
| Dimensions | 93mm x 45mm x 13mm |
| Certificates | CE, UKCA |
