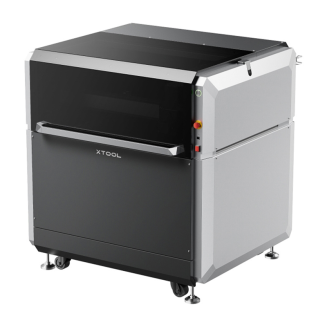

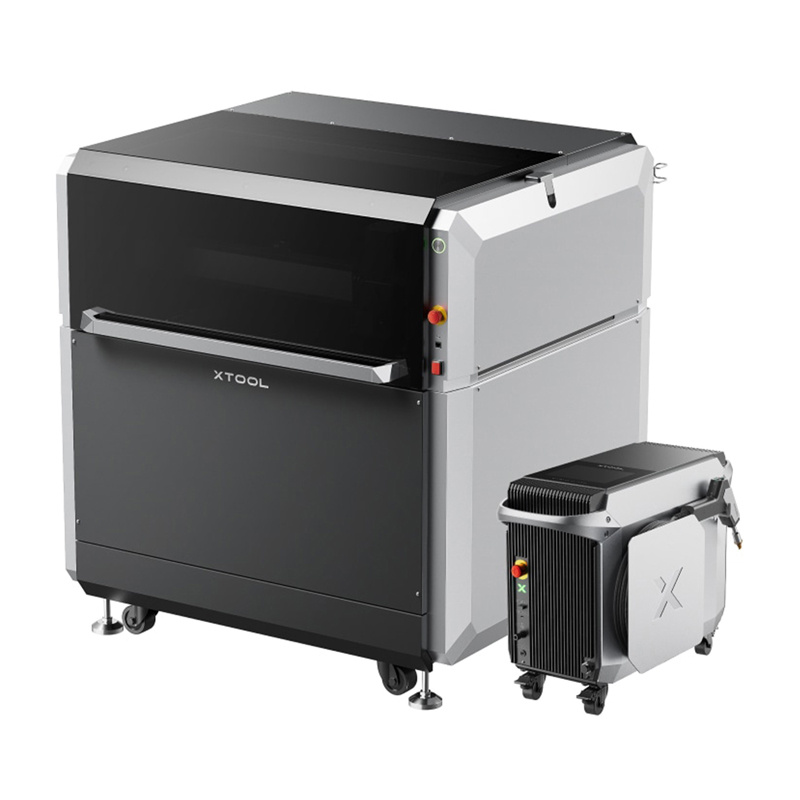

xTool MetalFab 1200W Laser Welder and CNC Cutting Machine

xTool MetalFab 1200W Laser Welder and CNC Cutting Machine

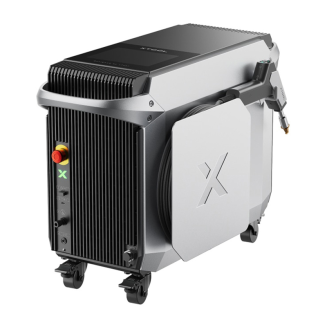

The xTool MetalFab 1200W is an advanced laser welder that combines three processes in one device: welding, metal cutting, and surface cleaning (including rust removal). You can also combine it with the included CNC (Computerized Numerical Control) cutting machine for even more capabilities. With 1200W of power, the device guarantees fast and precise results, and its intuitive operation makes it suitable for both professional workshops and hobbyists.

Comprehensive workshop in one machine

The xTool MetalFab laser welder combines welding, cutting, and cleaning functions in a single device. When paired with a CNC cutting machine, it also offers CNC cutting and cleaning capabilities. The system supports continuous, spot, and pulse welding, enabling precise process control for a variety of applications—from delicate jewelry pieces to robust industrial structures.

Industrial Technology

MetalFab utilizes industrial-grade Coherent chips that efficiently convert electrical energy into a powerful 1200W laser beam with a wavelength of 1080nm. These technological advancements ensure stable and precise cutting and welding. The system supports thicknesses from 0.2mm to 5mm and is suitable for a variety of metal materials, such as stainless steel, carbon steel, brass, and aluminum.

Precise welding regardless of material

Fiber laser technology minimizes heat-affected zones to ≤ 0.05 mm, enabling precise, distortion-free welding of thin metals. High output power ensures rapid metal melting, and the solution produces deep, narrow welds, regardless of material or joint type, ensuring consistent and reliable quality.

Smooth, clean, and flawless cuts

The high-energy 1200W fiber laser effortlessly cuts carbon steel up to 10mm thick in a single pass. With a minimal heat-affected zone and high power, it delivers precise cutting results, ensuring smooth, clean surfaces without distorting thin metals and reducing the need for additional finishing.

Technologies that increase precision

The secret to precise cutting lies in the technologies used, which work together to ensure maximum accuracy. VibeFreeCut™ integrates advanced motion control algorithms with system recognition technology to eliminate vibrations in real time. FlexiTrack™ constantly checks the distance between the laser head and the metal surface in real time, automatically adjusting the Z axis. ObstacleFree™, meanwhile, features a special obstacle avoidance algorithm that ensures continuous operation and equipment safety.

Work faster and more efficiently

Laser technology enables fast, precise work, minimizing defects and reducing the need for rework. The system achieves a cutting speed of 15.75 ips (inches per second) and is up to 8 times faster than TIG (Tungsten Inert Gas) welding. It also has an ultra-low rework rate and zero cooling time. All this allows you to complete a wide variety of projects in the blink of an eye!

Dual cameras – intelligent vision, precise cutting

A 16MP panoramic camera and AI (Artificial Intelligence) algorithms allow the system to automatically analyze materials and create optimal cutting patterns—with just one click! This results in a material utilization rate of up to 98.7%. Forget about wasting material! Furthermore, the close-range camera ensures precise positioning with a central deviation of less than 0.2mm, ensuring exceptional accuracy. This solution is ideal even for small objects.

Try the available software

The available software offers one-click parameter configuration without the need for material testing. No more wasting time – simply select the appropriate material and quickly achieve optimal settings. Additionally, the intelligent Smart Flow Cutting mode connects line segments in the same direction, ensuring continuous cutting, minimizing unnecessary movements, and increasing productivity by up to 50%. Also, try AImake, which creates ready-to-use patterns based on prompts in just seconds.

Convenient touch controls

The 8-inch touchscreen with its intuitive interface makes the welder easy to use. It offers 108 ready-to-use material parameters and allows you to easily switch between three welding modes. You can also fine-tune and save custom settings.

Highest safety standards with 10 functions

xTool MetalFab is CE (Conformité Européenne, a mark of conformity with European Union standards), FCC (Federal Communications Commission), and FDA (Food and Drug Administration) certified, meeting rigorous quality standards. The system is also equipped with 10 safety features, including an emergency stop button, 3-zone real-time temperature monitoring, lid and drawer closed detection, exhaust fan detection, and an OD5+ (Optical Density 5+) light-filtering cover.

Impressive lifespan

High-quality, industrial-grade materials, a Coherent chip, intelligent thermal management, and high-efficiency cooling ensure xTool MetalFab delivers stable performance even in extreme temperatures ranging from -10°C to 40°C. Its clever design minimizes the risk of overheating, ensuring long-term reliability during heavy use. It has a lifespan exceeding 10,000 hours!

Included

• xTool MetalFab Laser Welder
• Wire Feeder
• Wire Feeder Cable
• Wire Guide Cable
• Stainless Steel Wire 1mm
• Drive Roller 0.8mm / 1.0mm
• Drive Roller 1.2mm / 1.6mm
• Wire Feeder Nozzle 1.2mm / 1.6mm
• Cutting Tip
• Welding Nozzle (for autogenous welding)
• Cleaning Nozzle
• Lens Cover (Spare Part) x5
• Safety Goggles
• Heat-Resistant Gloves
• Tube (Outer Diameter: 10mm)
• Cable Power Cable
• Sensor Cable
• 304 Stainless Steel Sheet (Thickness: 2mm) x4
• Dongle
• USB Flash Drive
• 2.5mm Allen Key
• 2mm Allen Key
• Round Cotton Swabs
• Sharp Cotton Swabs
• CNC Cutting Machine
• Cleaning Nozzle
• Telescopic Cutting Nozzle
• Cutting Tip
• Ceramic Ring
• Power Cable
• Communication Cable
• Strip x5
• Z-Shaped Key
• External Antenna
• Cable Fixing Block
• Hook
• Laser Alignment Card + Stamp Pad Red
• Level
• Computer connection cable
• 3 mm Allen key
• 4 mm Allen key
• Open-end wrench
• Accessory box
• M4*30 x15 screw
• M4*10 x5 screw
• M6*12 x10 screw
• Camera calibration plate
• Metal sheets
• Cable tie
• Base plate
• Exhaust fan
• Smoke exhaust pipe
• Safety instructions
• Quick start guide
