Mini PC GMKtec EVO-T1 Intel Ultra 9 285H 64GB/1TB Win 11 Pro

Mini PC GMKtec EVO-T1 - Intel Ultra 9 285H - 64GB RAM + 1TB SSD

The GMKtec EVO-T1 is a mini computer that, despite its small size, offers high performance. Powered by a 16-core Intel Core Ultra 9 285H processor, equipped with 64GB of DDR5 RAM and a fast 1TB SSD, it's perfect for office, graphics, and gaming applications. With a dedicated NPU, PCIe 4.0 ports, and a full range of ports, the EVO-T1 is a versatile solution for demanding users.

Intel Core Ultra 9 285H processor

At the heart of the device is the Intel Core Ultra 9 285H – a 16-core and 22-thread processor built on the 6P-Core + 8E-Core + 2LP E-Core architecture, manufactured using the TSMC N3B process. The system offers 24 MB of cache and a TDP of 45 W. With computing performance of up to 99 TOPS, this processor handles intensive multitasking perfectly. In the Cinebench 2024 Multi-Core benchmark, it achieves a score of 1048 points, outperforming popular competitive units such as the AMD Ryzen 9 8945HS.

Dedicated AI Unit

The processor's integrated NPU offers 13 TOPS of processing power, enabling significantly faster performance of AI-related tasks, including video editing and voice assistants. This allows the computer to run more efficiently while consuming less power and emitting less heat, resulting in a longer lifespan and more stable operation.

Intel Arc 140T Graphics

The EVO-T1 is equipped with an Intel Arc 140T graphics chip, offering 4GB of GDDR6 memory and 4.8 TFLOPS of FP32 performance. The card supports XeSS technology, which improves gameplay by up to 40% and enables smooth 1080p playback. It also accelerates rendering in applications like Premiere Pro and enables local AI image generation, such as in Stable Diffusion, with rendering times of around 15 seconds for 512x512 pixel images.

Full bandwidth for graphics cards

One of the distinguishing features of this model is the OCuLink PCIe Gen4 x4 port, which offers a bandwidth of up to 64 Gbps, ensuring near-lossless communication with external graphics cards. Compared to USB4 and Thunderbolt 4, which offer 40 Gbps each, OCuLink guarantees higher GPU efficiency of over 95%. However, it's important to note that this connector does not support hot-plugging – connecting and disconnecting devices should be done with the computer turned off.

Maximum capacity and speed

The device offers 64GB of DDR5 RAM in a dual-channel configuration (2x32GB SO-DIMM) clocked at 5600MT/s, providing 75% faster performance than older DDR4 modules and up to 20% more throughput during multitasking. Data storage is provided by three M.2 2280 PCIe 4.0 slots, supporting drives with a total capacity of up to 24TB. With read speeds of up to 7000MB/s, the EVO-T1 easily handles large files, and the flexible configuration allows for partitioning the storage space for the system, projects, and backup.

Displaying the image on 4 screens

The Mini PC allows you to connect four displays simultaneously at resolutions up to 8K at 60Hz. It features an HDMI 2.1 port with CEC support, a DisplayPort 1.4, and two USB 4.0 ports for power, video, and data transfer. This configuration simplifies working with advanced graphics and editing projects, as well as improving the user experience for everyday tasks.

Wireless Connectivity

With support for WiFi 6, this PC offers data transfer rates twice as fast as previous generations, allowing for smooth 4K video streaming and low-latency gaming. Bluetooth 5.2 ensures a stable connection to wireless accessories like headphones, keyboards, and mice, even in crowded environments with multiple devices.

A rich set of ports – everything at your fingertips

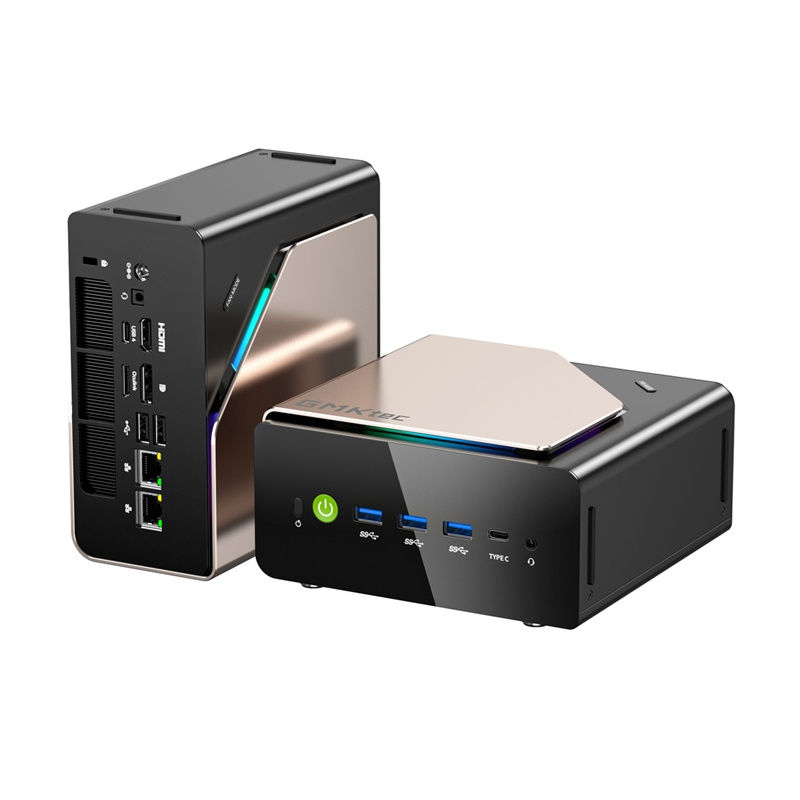

The GMKtec EVO-T1 offers a wide range of ports for connecting various devices. The front of the case features three 10Gbps USB 3.2 ports, one USB 4.0 port supporting power, data, and video, and a 3.5mm CTIA headphone jack. The rear of the case features another USB 4.0 port, two USB 2.0 ports, an HDMI 2.1 port, a DisplayPort 1.4 port, an OCuLink PCIe Gen4 x4 port, two 2.5G LAN ports, and an additional audio jack.

Advanced Cooling

The EVO-T1 utilizes a dual cooling system consisting of a VC heat pipe and two fans, delivering temperatures up to 30% lower than traditional solutions. Ventilation holes and an RGB fan provide 360° airflow, effectively dissipating heat even under heavy load. This arrangement allows for quiet and stable operation of components, which is especially important during prolonged use.

Included

• GMKtec EVO-T1
• power supply
• power cable
• HDMI cable
• VESA mount
• screws
• user manual
