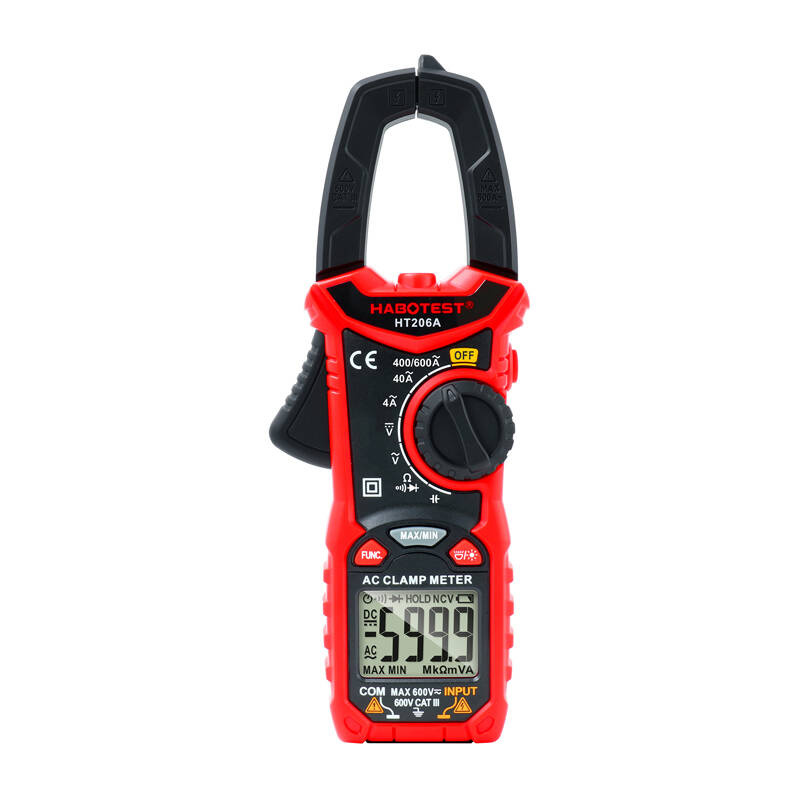

Cyfrowy miernik cęgowy Habotest HT206A
This functional Habotest clamp meter guarantees precise measurements, with results displayed on a clear, backlit LCD screen. The jaws are up to 26 mm wide, allowing for comfortable operation. The HT206A is also equipped with a flashlight for easy operation in dark rooms.
Measures various parameters
With this multimeter, you can check the value of many different parameters. Using the HT206A, you can measure AC voltage, AC current, and resistance, among other things. But that's not all! You can also easily check continuity and check the true RMS value.
Clear, practical display

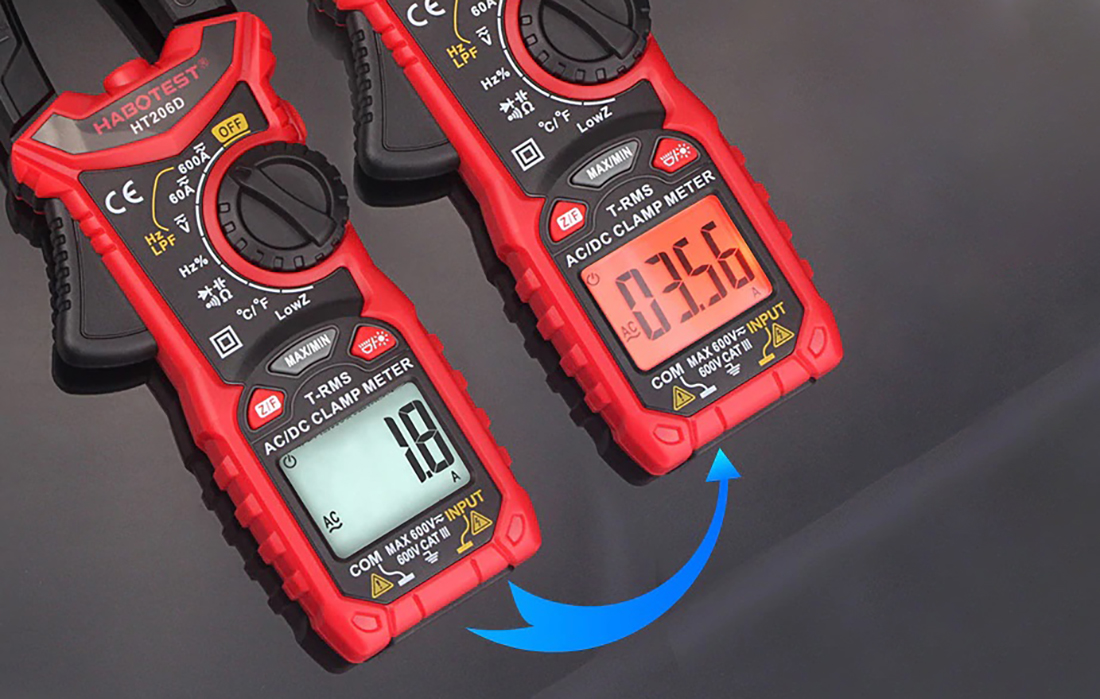

The meter is equipped with an LCD display with a dual-color backlight. It displays not only measurement results but also a low battery indicator, making it easy to use the HT206A. Furthermore, the backlight turns orange when the measured voltage exceeds 80 V and the measured current exceeds 3 A.
Easy to use in all conditions

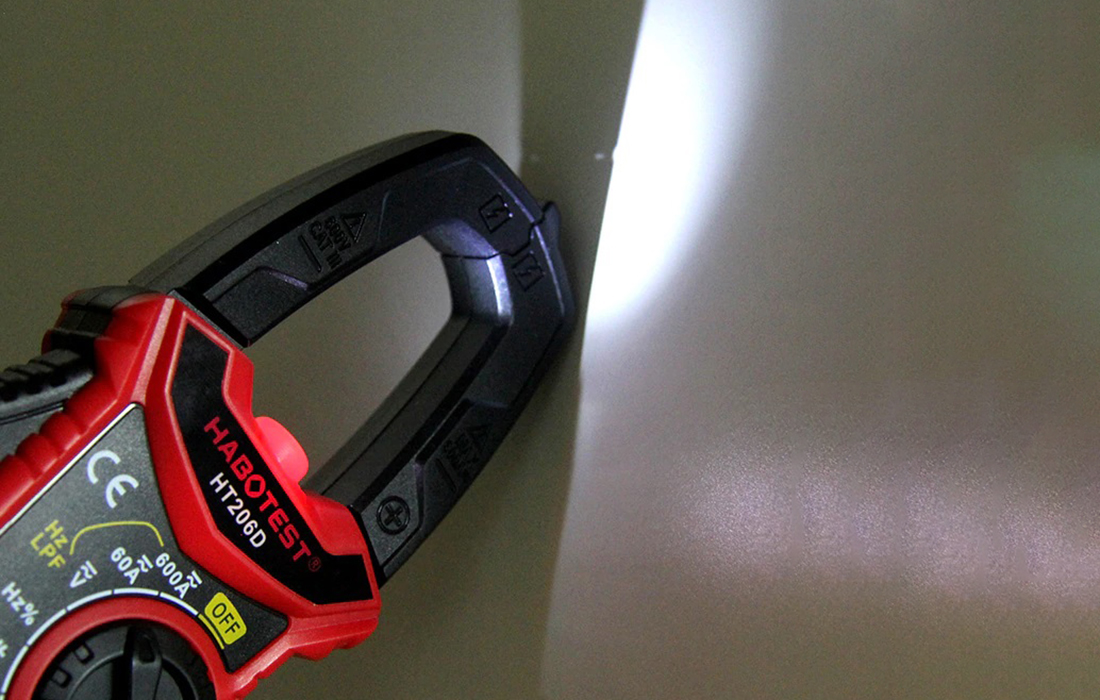

The built-in flashlight provides bright illumination, allowing you to work comfortably even in dark places. Intuitive buttons make it easy to use the device, allowing you to quickly and conveniently select a function, use the MAX/MIN measurement option, and turn the light on or off. An additional advantage of the meter is its data storage option.
| Manufacturer | Habotest | |
|---|---|---|
| Model | HT206A | HT206D |
| DC voltage measurement range | 400mV/4V/40V/400V/600V ±(0.5%+5) | 600mV/6V/60V/600V ±(0.5%+5) |
| AC voltage measurement range | 4V/40V/400V/600V ±(1.0%+5) | 6V/60V/600V ±(0.8%+5) |
| DC Current Measurement Range | Not applicable | 60 A/600 A ±(2.5%+5) |
| AC Current Measurement Range | 4 A/40 A/600 A ±(2.5%+8) | 60 A/600 A ±(2.5%+5) |
| Resistance measurement range | 400 Ω/4 kΩ/40 kΩ/400 kΩ/4 MΩ/40 MΩ ±(1.0%+5) | 600 Ω/6 kΩ/60 kΩ/600 kΩ/6 MΩ/60 MΩ ±(1.0%+5) |
| Capacitance measurement range | 4 nF/40 nF/400 nF/4 μF/40 μF/400 μF/4 mF ±(4.0%+5) | 10 nF/100 nF/1 μF/10 μF/100 μF/1 mF/10 mF/100 mF ±(4.0%+3) |
| Frequency measurement range | Not applicable | 10 Hz/100 Hz/1 kHz/10 kHz/100 kHz/1 MHz/10 MHz ±(1.0%+3) |
| Duty Factor Measurement Range | Not applicable | 1%-99% ±(3.0%+3) |
| Temperature measurement range | Not applicable | -40°C-1000°C ±(1.0%+2); -40°F-1832°C ±(1.0%+2) |
| Number of counts | 4000 | 6000 |
| Selection of ranges | Automatic | Automatic |
| Continuity Test | Yes, sound and light alarm | Yes, sound and light alarm |
| Diode Testing | Yes | Yes |
| Data Storage | Yes | Yes |
| NCV | No | Yes, sound and light alarm |
| Backlight | Yes | Yes |
| Flashlight | Yes | Yes |
| DCA Zero | No | Yes |
| Low battery indicator | Yes | Yes |
| Automatic shutdown | Yes | Yes |
| True RMS Value | Yes | Yes |
| LPF | Nie | Tak |
| MAX/MIN | Tak | Tak |
| LowZ | Nie | Tak |
| Zasilanie | 2x bateria AAA 1,5 V(w zestawie) | 2x bateria AAA 1,5 V(zestawie) |
| Waga | Ok. 260 g | Ok. 260 g |
| Wymiary | 193x73x34 mm | 193x73x34 mm |
| Rozmiar szczęk | ∅26x44 mm | ∅26x44 mm |
| Bezpieczeństwo | EN61010-1 -2-030; EN61010-2-033, EN61326-1 CAT III 600V | EN61010-1 -2-030; EN61010-2-033, EN61326-1 CAT III 600V |
