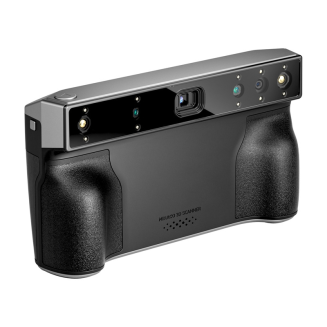

Revopoint Miraco 3D Scanner

Revopoint Miraco 3D scanner

Immerse yourself in a new era of mobile 3D scanning with Revopoint Miraco – an ultra-light and fully wireless scanner that works continuously for up to two hours on a single charge. The quad-camera depth system allows you to seamlessly switch between precise detail (0.02mm) and fast scanning of large objects (0.2mm), available in Single Shot and Continuous Shot modes. A powerful 2.8 GHz octa-core processor, 16 GB RAM, and 256 GB of internal memory store up to 10,000 frames, while the 6-inch 2K AMOLED screen with 180° adjustment and advanced post-processing features allow you to work without a computer. Photorealistic colors are provided by a 48 MP RGB camera, while a 9-axis IMU, IP45 certification, and Wi-Fi 6 guarantee reliability in all conditions. Discover how easy it is to bring reality to the digital world!

Wireless freedom and compact design

The Revopoint Miraco revolutionizes 3D scanning by combining unparalleled portability with a lightweight design weighing just 750g. Thanks to a built-in 5000mAh battery and 50W fast charging technology, the device operates continuously for approximately two hours and recharges in a matter of seconds. This means you can completely forget about cables and a stationary workstation – scan wherever you want, without compromise.

Endless possibilities of detail and scale

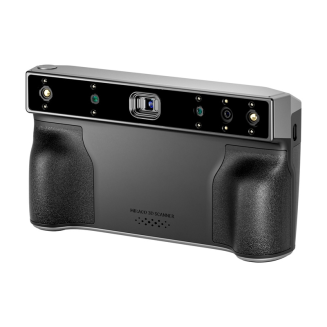

With its Quad Depth Camera system, Miraco seamlessly switches between capturing the smallest details (for example, a 33 x 10 x 10 mm screw) and capturing large objects (such as a 600 x 138 x 220 mm muffler). This dynamic combination allows it to maintain surgical precision down to 0.02 mm in a single shot, while simultaneously scanning larger forms with 0.2 mm accuracy, without having to change equipment or set up different modes.

Two-speed image registration

For situations requiring detailed rendering of complex surfaces, Single Shot Mode eliminates tracking loss and difficulty with contrasting textures. And when speed is a priority, Continuous Shot Mode allows you to work at up to 15 frames per second, significantly speeding up the process of creating 3D models of both small and large objects.

Independence without compromise

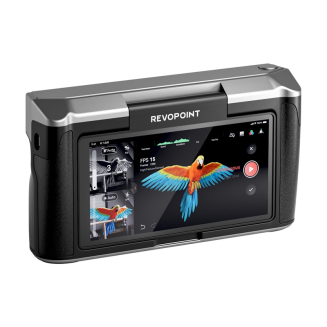

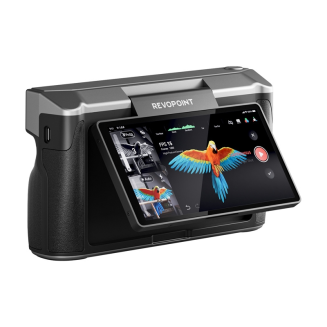

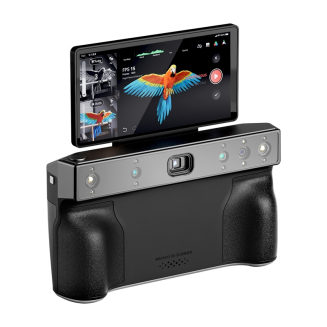

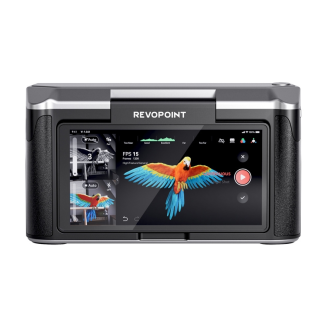

The Miraco is equipped with an octa-core 2.8 GHz processor, 16 GB of RAM (random-access memory, main memory), and a 256 GB hard drive, allowing it to store up to 10,000 frames, including 4,000 scans with color. Advanced point cloud processing and model editing functions are available on the device – you don't need a computer to see the scan results. Everything is displayed on a 6-inch 2K AMOLED screen (Active-Matrix Organic Light-Emitting Diode, an advanced display technology that uses organic light-emitting diodes), which can be adjusted 180°, adapting the frame to any measurement situation.

Photorealistic colors and security

The Miraco's 48MP RGB camera guarantees vivid, accurate color reproduction in both single and continuous shooting. Additionally, a nine-axis IMU (Inertial Measurement Unit, a module that measures the acceleration and angular velocity of an object in space using accelerometers and gyroscopes) ensures stable and accurate motion tracking, while IP45 certification allows for operation in temperatures ranging from -10°C to 40°C, making the scanner ready for extreme conditions. Wi-Fi 6 support and face scanning for selfies expand the device's applications, making it an invaluable tool for engineers, designers, and content creators.

Included

• Miraco scanner
• Tripod
• Mini turntable
• Bust (for test scan)
• Turntable attachment
• Turntable power cable
• Storage bag
• Calibration plate for close-up scanning
• Wrist strap
• Dual USB Type-C adapter
• USB Type-C to C cable (1.8 m)
• Cleaning cloth
• Stickers
• User manual
