3-kierunkowy miernik zużycia energii elektrycznej Shelly PRO 3EM 400A WiFi

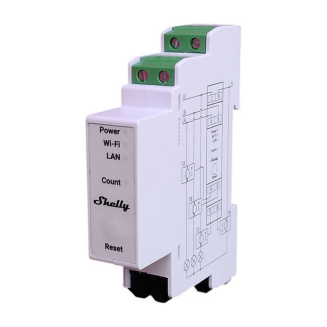

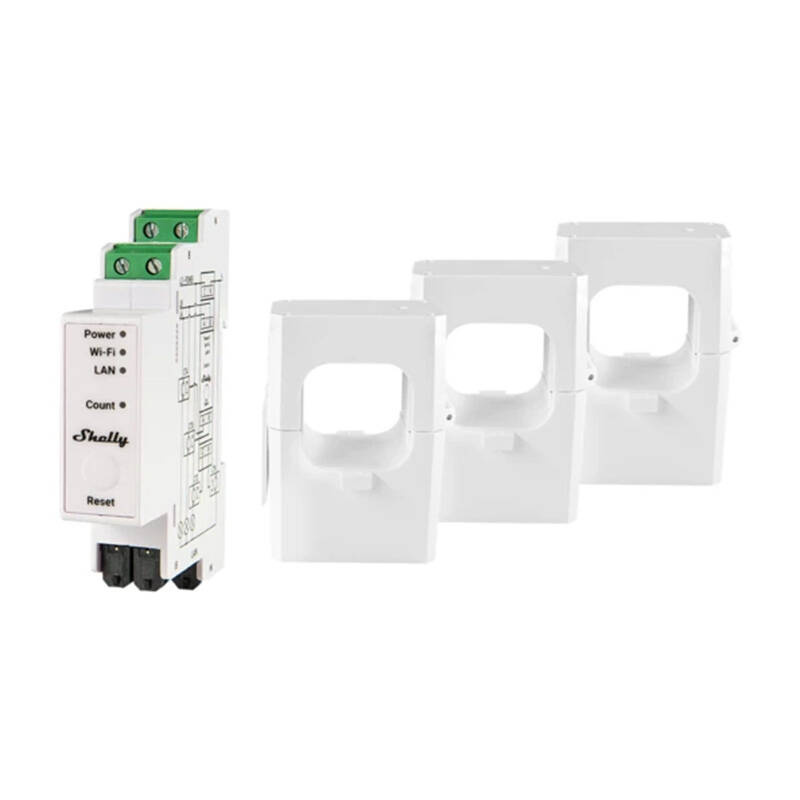

The Shelly Pro 3EM 400A is a professional, three-phase electricity consumption meter that can be mounted on a DIN rail. The device reports accumulated energy with 1% accuracy, as well as instantaneous voltage, current, and power for each phase in real time. It stores data from the last 60 days with a resolution of one minute for each phase, enabling precise analysis. Furthermore, its scripting function allows for the creation of advanced scenarios and offers expanded monitoring options.
| Manufacturer | Shelly |
|---|---|
| Model | SPEM-003CEBEU400 |
| AC Supply Voltage | 110 - 240 V, 50/60 Hz |
| Energy consumption | < 3 W |
| Internal temperature sensor | Yes |
| Voltmeters (RMS for each phase) | 100 - 260 V |
| Voltmeter Accuracy | ±1% |
| Ammeters (RMS via CT for each phase and Neutral) | 0 - 400 A |
| Compatible Converter Currents (CT) | CT-400A |
| Ammeter Accuracy | ±1% (5 - 400 A), ±2% (0 - 5 A) |
| Power and Energy Meters | Active and apparent power, active and apparent energy, power factor, basic active energy and basic reactive energy |
| Channel-to-Channel Calibration with Minimum Load | 5000 W per channel |
| No Load Threshold | 30 VA per channel |
| Storing measurement data | At least 60 days with 1-minute data resolution |
| Data export: F | CSV format for saved PQ values, export in JSON format via RPC |
| Wi-Fi Protocol | 802.11 b/g/n |
| Wi-Fi Range | Up to 30 m indoors and 50 m outdoors |
| Bluetooth Protocol | 4.2 |
| Bluetooth Range | Up to 10 m indoors and 30 m outdoors |
| CPU | ESP32-D0WDQ6 |
| Flash Memory | 16 MB |
| Ambient temperature | -20°C to +40°C |
| Humidity | 30% to 70% RH |
| Maximum Height | 2000 m |
| Dimensions | 94 x 19 x 69 ±0.5 mm |
| Weight | 62 ±1 g |
| Assembly | DIN rail |
| Case Material | Plastic |
