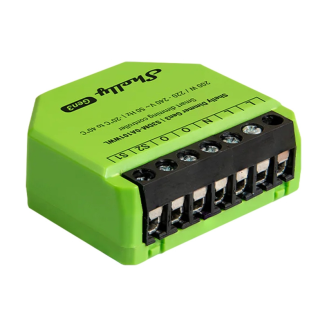

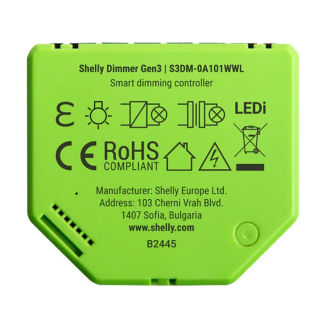

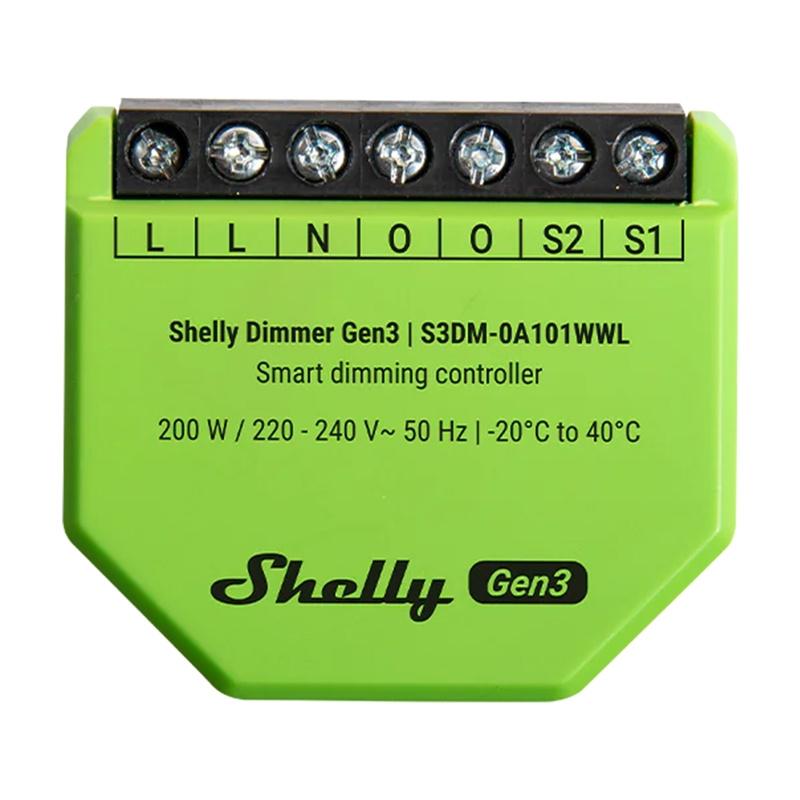

Ściemniacz Wi-Fi SHELLY Dimmer Gen3
- Watch the product:
- Add feedback:
- Code: INN_51927
- Manufacturer: Shelly
- Availability: 1 working day
-
- 46.10 EUR
- szt.
BUY NOW AND CREATE YOUR DREAM HOME. DO IT NOW IN 3 SIMPLE STEPS.
Your purchases will be delivered by DPD Courier.
You can pay for your purchases with credit card or bank transfer using safe PayU system or bank transfer.
You've made a good choice. However, if you return the product within 14 days, you'll receive a full refund.
Ściemniacz światła WiFi Shelly Dimmer Gen3
The Shelly Dimmer Gen3 is a compact, single-circuit light dimmer that allows precise brightness control from a smartphone, tablet, computer, or home automation system. It works on a local Wi-Fi network without the need for an additional hub and also supports remote control via the cloud. It can work with or without a neutral wire. The device also offers Wi-Fi signal boosting, Bluetooth and BLE Gateway compatibility, and a range of automation options, including schedules, scripts, and integration with systems like Home Assistant, Google Home, Alexa, and SmartThings.
Operation with and without neutral wire
The Shelly Dimmer Gen3 allows for installation in both neutral and neutral-wire systems, which is crucial when upgrading existing installations. For operation without a neutral wire, a bypass module is required if the load is less than 20W – this prevents the lamp from accidentally turning on after being turned off.
Accurate measurements and security
After connecting the neutral wire, the device can measure voltage (180–240 V), current (0–3 A), and energy consumption. These measurements are accurate to ±5%. Additionally, the device is equipped with an internal temperature sensor and short-circuit and overload protection. Note: These functions only work properly when connected to a neutral wire.
Convenient control and precise dimming
The product supports trailing edge mode, which ensures smooth dimming of a wide range of light sources – from LEDs (up to 150W) to halogen bulbs (up to 200W) and electronic transformers. Automatic dimmer calibration ensures a consistent dimming effect regardless of the light source type. Built-in functions such as minimum and maximum brightness settings, fade time adjustment, and night mode allow for full control of the lighting – both manually and via schedules.
Automation and Advanced Scheduling
Shelly Dimmer Gen3 supports up to 20 schedules and 20 webhooks (with 5 URLs each). It allows you to create advanced scenarios using scripts and local actions. You can schedule brightness changes, transition times, and set automatic light on/off. Support for MQTT, KVS, and virtual components enables deep integration with advanced building automation systems.
General
| Manufacturer | Shelly |
|---|---|
| Model | DimmerGen3 |
Parametry fizyczne
| Dimensions | 38 x 42.5 x 16.5 mm / 1.50 x 1.67 × 0.65 in |
|---|---|
| Weight | 24.3 g / 0.86 oz |
| Maximum Terminal Torque | 0.4 Nm / 3.5 lbin |
| Wire Cross-Section | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, ferrules) |
| Stripped Wire Length | 5 to 6 mm / 0.20 to 0.24 in |
| Mounting | Box Wall-mounted |
| Housing Material | Plastic |
| Housing Color | Green, Print: Black |
| Connector Color | Black |
Warunki środowiskowe
| Temperatura robocza | od -20°C do 40°C / -5°F do 105°F |
|---|---|
| Wilgotność robocza | od 30% do 70% RH |
| Maksymalna wysokość n.p.m. | 2000 m / 6562 stóp |
Parametry elektryczne
| Power Supply | 220–240 V~, 50 Hz |
|---|---|
| Power Consumption | < 1.5 W |
| No Neutral | Yes |
| Minimum Load without Neutral and without Bypass | 20 W |
| Dimming Type | Trailing Edge |
| External Fuse | 16 A, Characteristic B or C, 6 kA Breaking Capacity, Energy Limiting Class 3 |
| Short Circuit Protection | Yes |
Output circuit parameters
| Maximum output power | 200 W |
|---|
Sensors and Measurements
| Voltage Range (AC) | 180–240 V |
|---|---|
| Voltage Accuracy | ±5 % (when used with neutral wire) |
| Current Range (AC) | 0–3 A |
| Current Accuracy | ±5 % (when used with neutral wire) |
| Internal Temperature Sensor | Yes |
Wi-Fi
| Protocol | 802.11 b/g/n |
|---|---|
| RF Band | 2412–2472 MHz |
| RF Power | < 20 dBm |
| Range | Up to 30 m indoors / 50 m outdoors (depending on conditions) |
Bluetooth
| Protocol | 4.2 |
|---|---|
| RF Band | 2402–2480 MHz |
| Maximum RF Power | < 4 dBm |
| Range | Up to 10 m indoors / 30 m outdoors (depending on conditions) |
Jednostka mikroprocesorowa
| CPU | ESP32 C3 / STM32 G051 |
|---|---|
| Częstotliwość zegara | ESP32 C3 – 40 MHz |
| Pamięć Flash | 8 MB |
Funkcje oprogramowania układowego
| Harmonogramy | 20 |
|---|---|
| Webhooks (akcje URL) | 20 z 5 adresami URL na webhook |
| Skrypty | Tak |
| MQTT | Tak |
| Zaawansowane harmonogramy | Tak |
| KVS (Key-Value Store) | Tak |
