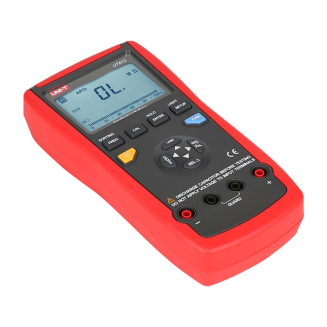

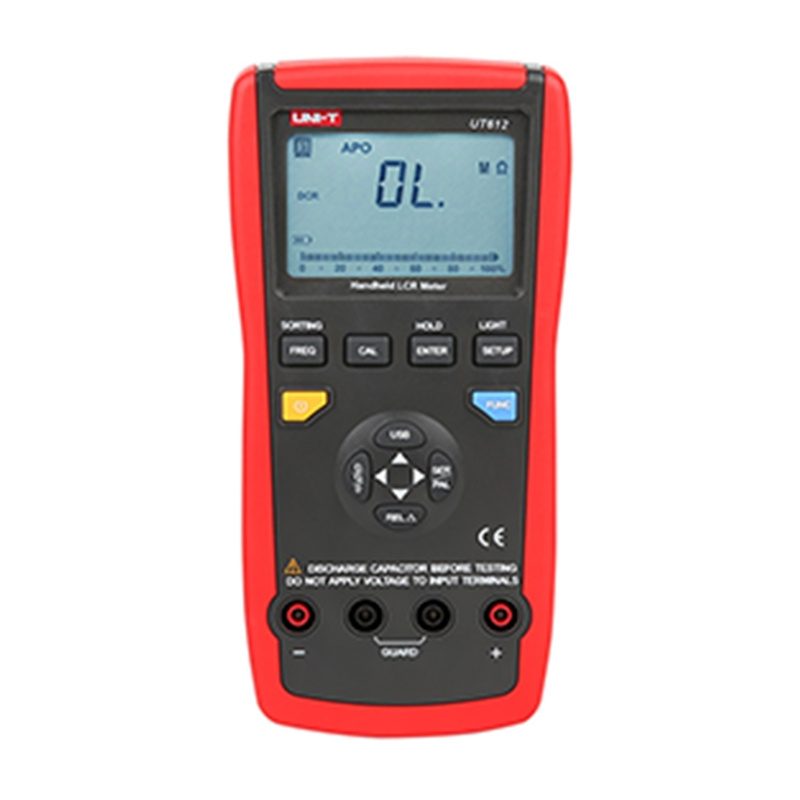

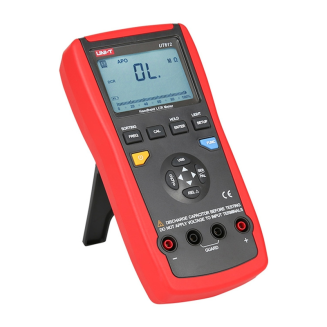

Uni-T LCR Meter UT612
The Uni-T UT612 LCR Meter is an advanced measurement tool designed for accurate testing of inductance, capacitance, and resistance over a wide range – from 20 µH to 2000 H, 200 pF to 20 mF, and 20 Ω to 200 MΩ. The device operates at five test frequencies (100 Hz, 120 Hz, 1 kHz, 10 kHz, and 100 kHz), offering series and parallel measurement modes, and supporting parameters such as L, C, R, DCR, Q, D, θ, and ESR. Thanks to its high accuracy, automatic LCR component recognition, and a USB interface that can store up to 60,000 results, the UT612 is suitable for production lines, component inspection, and electronics service.
Extensive measurement functions
The meter offers not only basic LCR measurements but also more advanced options, such as quality factor, loss, and phase angle. The comparison function and deviation measurement help quickly assess whether a component is within specified tolerances, speeding up quality control and diagnostics. The USB interface allows you to connect the meter to a computer and save up to 60,000 measurement results. This solution is especially useful where documentation and long-term data analysis are important. Auto-off helps conserve battery life, while a low-power indicator (≤6.8V) helps prevent unexpected interruptions. The device can be powered by either a 9V battery or via USB, providing greater flexibility. The kit includes an SMD component clamp, a USB cable, and software, making the meter ready to use right out of the box.
Included
- Battery
- SMD test clamp
- USB cable
- Multifunction socket
- User manual
| Producent | Uni-T |
|---|---|
| Model | UT612 |
| Indukcyjność | 20 µH ~ 2000 H (±0,5% + 5) |
| Pojemność | 200 pF ~ 20 mF (±0,5% + 5) |
| Rezystancja | 20 Ω ~ 200 MΩ (±0,3% + 5) |
| Obsługiwane parametry | L, C, R, DCR, Q, D, θ, ESR |
| Częstotliwości testowe | 100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz |
| Napięcie testowe | 0,6 Vrms |
| Wyświetlacz | LCD (40 × 63 mm) |
| Liczba zliczeń | 20000 |
| D/Q liczba zliczeń | 2000 |
| Rozdzielczość D/Q | 0,001 |
| Zasilanie | Bateria 9V (6F22) lub zasilanie przez USB |
| Wymiary | 96 × 193 × 47 mm |
| Waga | 374 g |
