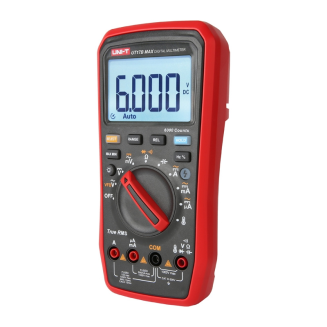

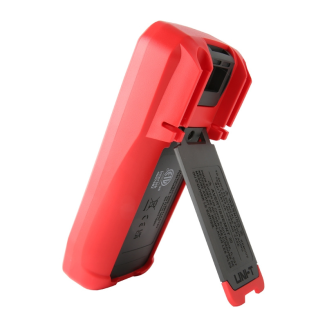

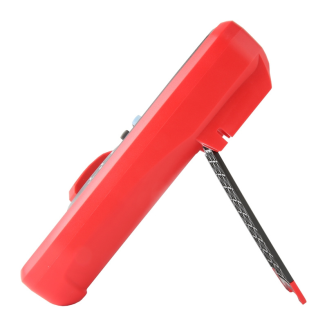

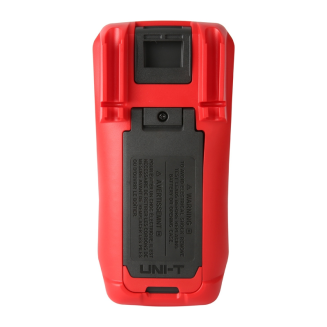

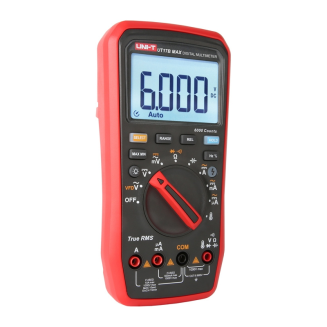

Uni-T True RMS UT17B MAX Digital Multimeter

  • Watch the product:
  • Add feedback:
  • Code: INN_57808
  • Manufacturer: UNI-T
  • Availability: 1 working day
  • 103.63 EUR
  • szt.

BUY NOW AND CREATE YOUR DREAM HOME. DO IT NOW IN 3 SIMPLE STEPS.

Your purchases will be delivered by DPD Courier.

You can pay for your purchases with credit card or bank transfer using safe PayU system or bank transfer.

You've made a good choice. However, if you return the product within 14 days, you'll receive a full refund.

Uni-T True RMS UT17B MAX Digital Multimeter

The Uni-T UT17B MAX is an enhanced version of the True RMS multimeter series. In addition to a wide range of basic measurements, it also offers temperature measurement. The device measures DC and AC voltage up to 1000 V, DC and AC current up to 10 A, resistance up to 60.00 MΩ, capacitance up to 6000 µF, and frequency up to 10 MHz. A temperature range of -55°C to 500°C makes this model better suited for a wider range of service and diagnostic applications.

A red-gloved hand with a UNI-T multimeter indicating 49.77 Hz, positioned next to the motor and inverter.

Features that make everyday diagnostics easier

Like the UT15B MAX, the UT17B MAX features a 6000-count display, continuity and diode testing, Data Hold, MAX/MIN, and relative modes. Adjustable backlighting, automatic and manual ranging, auto power off, and any-button wake-up enhance the convenience of everyday use. This makes the device suitable for both basic and more demanding measurements.

Voltage measurement of 1.76 V DC on an LED using probes and a UNI-T digital multimeter standing next to it.

More opportunities and immediate readiness

A major advantage of this model is the included K-type thermocouple, which allows for immediate use of the temperature measurement function. Safety is enhanced by a wire misconnection alarm and a CAT III 600V overvoltage rating. This is a good choice for those who want more extensive diagnostic capabilities without sacrificing ease of use.

Hands in red protective gloves hold a UNI-T multimeter indicating a voltage of 395.4 V AC at the control cabinet.

Included

  • Digital Multimeter
  • User Manual
  • Standard Gold-Plated Test Leads x2
  • Fine Tip Test Leads x2
  • Batteries x2
  • K-Type Thermocouple x1

Specification

ProducentUni-T
ModelUT17B MAX
TypMultimetr cyfrowy True RMS
Napięcie DC600,0mV / 6,000V / 60,00V / 600,0V / 1000V ±(0,4%+3)
Napięcie AC600,0mV / 6,000V / 60,00V / 600,0V / 1000V ±(0,5%+5)
VFD600,0V ±(8%)
Prąd AC600,0µA / 6000µA / 60,00mA / 600,0mA / 6,000A / 10,00A ±(1,2%+3)
Prąd DC600,0µA / 6000µA / 60,00mA / 600,0mA / 6,000A / 10,00A ±(1,2%+3)
Rezystancja600,0Ω do 60,00MΩ ±(0,5%+2)
Pojemność6,000nF do 6000µF ±(2,0%+5)
Częstotliwość10Hz ~ 10MHz ±(0,1%+3)
Cykl pracy1% ~ 99,9% ±(1,0%+4)
Temperatura-55°C do 500°C ±2°C / ±4°F
Wyświetlacz6000
Test ciągłościTak
Test diodTak
Data HoldTak
Tryb MAX/MINTak
Tryb względnyTak
PodświetlenieRegulowane
Zmiana zakresówAutomatyczna i manualna
Automatyczne wyłączanieTak
Wybudzanie dowolnym przyciskiemTak
Alarm wizualny i dźwiękowyTak
Alarm błędnego podłączenia przewodówTak
Kategoria przepięciowaCAT III 600V
Zasilanie2x bateria 1,5V AA
Waga455 g
Wymiary182 mm × 91 mm × 45 mm
KolorCzerwono-szary
