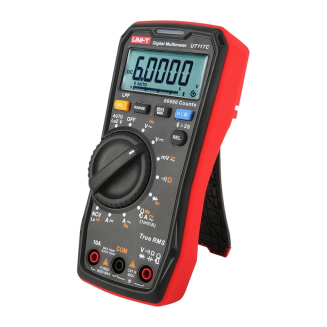

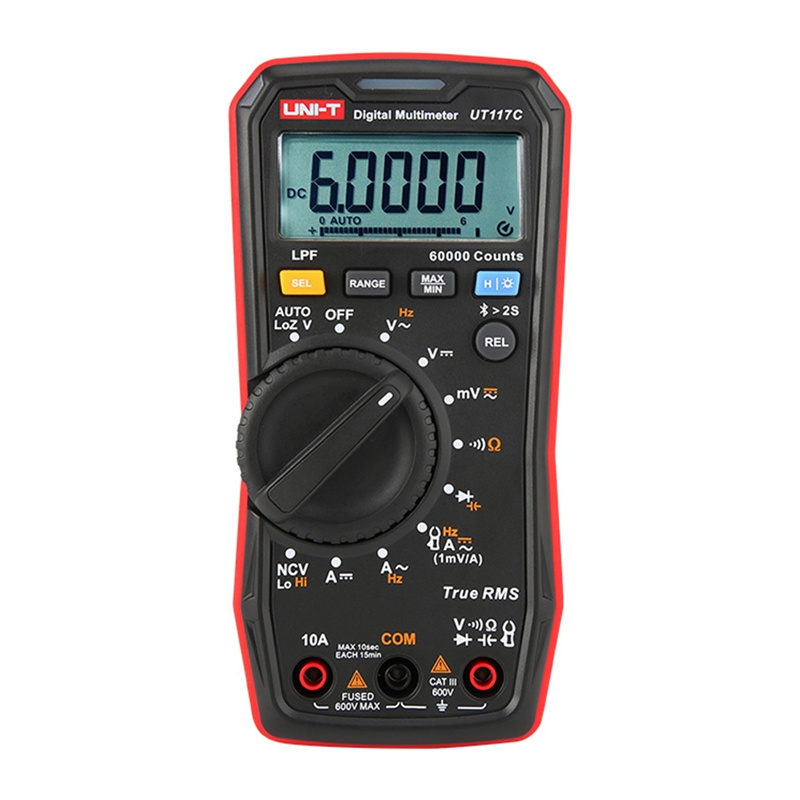

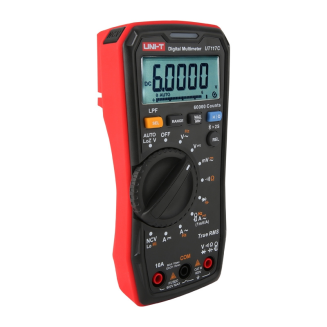

Uni-T UT117C Digital Multimeter

The Uni-T UT117C is a precise true RMS digital multimeter that combines a compact design with a wide range of applications and high measurement accuracy. The device measures AC/DC voltage up to 600 V, AC/DC current up to 10 A, as well as resistance, capacitance, and frequency. Its 60,000 count maximum reading and fast response make it ideal for electricians and electronics professionals who value accurate results and ease of use.

Digital multimeter with test leads connected while testing a green printed circuit board (PCB).

Advanced features for demanding measurements

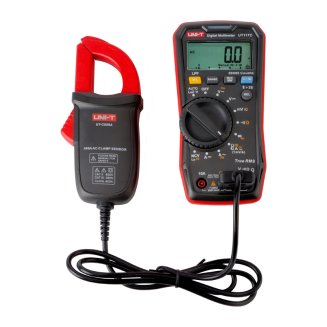

The UT117C features LoZ, LPF, and Auto Volt functions for increased convenience in a variety of measurement conditions. Bluetooth, external current clamp support, and non-contact NCV voltage detection are also available. The multimeter also offers continuity and diode testing, Data Hold, Max/Min mode, relative mode, and auto and manual ranging, making it more adaptable to a variety of service and installation tasks.

Measuring electrical parameters using a digital multimeter connected to an industrial inverter.

Solid construction and ease of use

The UT117C is designed for everyday use in the field and workshop. It can withstand a 2-meter drop and features audible and visual indications, as well as a high-voltage warning, for added safety during measurements. Additional features include an LCD backlight, auto-off, a low battery indicator, and an optional magnetic holder for added convenience.

A digital multimeter held in a red glove next to current clamps attached to wires in a control cabinet.

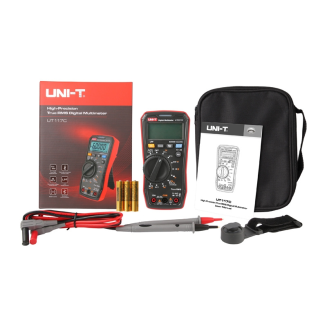

Included

  • Digital multimeter
  • Test leads
  • AAA batteries x3
  • Magnetic strip
  • User manual

Specification

ProducentUni-T
ModelUT117C
TypMultimetr cyfrowy True RMS
Napięcie AC600,00mV / 6,0000V / 60,000V / 600,00V ±(1% + 30)
Napięcie DC600,00mV / 6,0000V / 60,000V / 600,00V ±(0,3% + 10)
Prąd AC6,0000A / 10,000A ±(1,5% + 30)
Prąd DC6,0000A / 10,000A ±(0,5% + 10)
Auto Volt LoZ600,0V ±(1% + 3)
Napięcie LPF AC600,0V ±(2% + 3)
Częstotliwość99,99Hz / 999,9Hz / 9,999kHz / 50,00kHz ±(0,01% + 3)
Rezystancja600,00Ω~6,0000MΩ ±(0,5% + 5), 40,000MΩ ±(3% + 5)
Pojemność1000nF / 10,00uF / 100,0uF ±(1,9% + 5), 1000uF / 10000uF ±(2,5% + 5)
Maksymalny odczyt wyświetlacza60000
Współczynnik dla cęgów1mV/A
FunkcjeNCV, ostrzeżenie o wysokim napięciu, sygnalizacja dźwiękowa i wizualna, test ciągłości, test diod, Data Hold, Max/Min, tryb względny, automatyczna i ręczna zmiana zakresów, podświetlenie LCD, True RMS, obsługa zewnętrznych cęgów prądowych, wskaźnik niskiego poziomu baterii
BluetoothTak
Automatyczne wyłączanie podświetleniaPo 5 minutach
Automatyczne wyłączaniePo około 15 minutach
Test upadku2 m
Kategoria przepięciowaCAT III 600V
Zasilanie1,5V AAA x3
WagaOkoło 346 g
Wymiary169 mm x 84 mm x 48,8 mm
KolorCzerwony i szary
CertyfikatyCE, UKCA, cETLus
