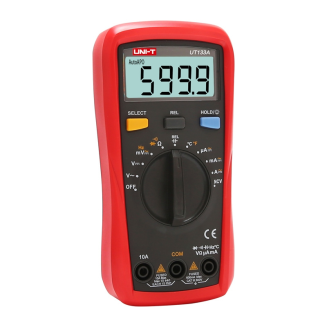

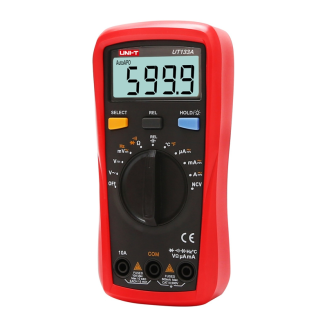

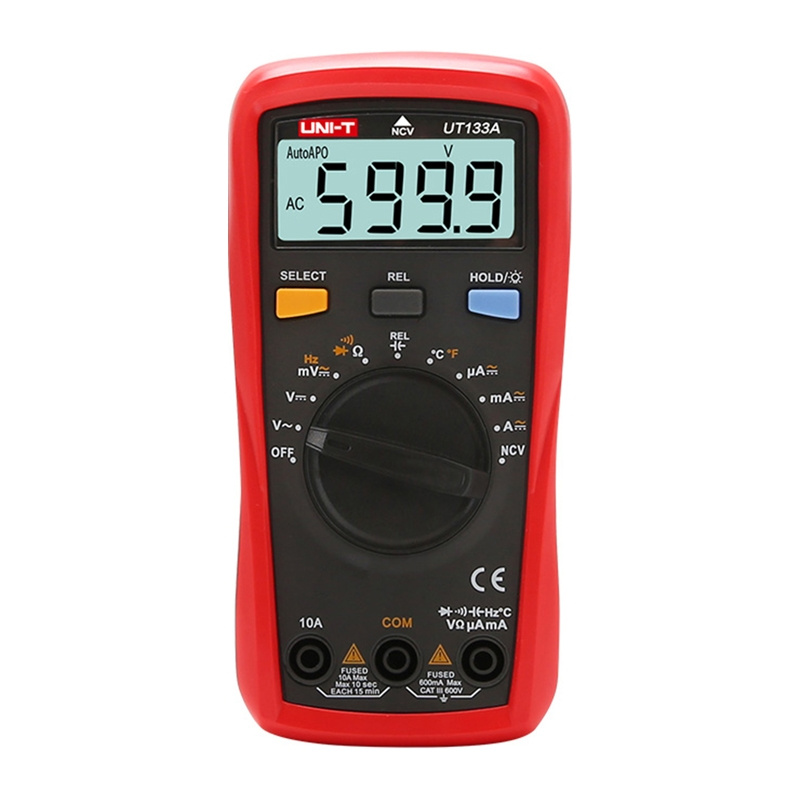

Uni-T UT133A Handheld Digital Multimeter

The Uni-T UT133A is a handy digital multimeter designed for electrical and service applications, combining a compact design with a wide measurement range. It measures AC/DC voltage up to 600 V, AC/DC current up to 10 A, resistance up to 60 MΩ, capacitance up to 9.999 mF, frequency up to 1.000 MHz, and temperature from -40°C to 1000°C. An intelligent ADC circuit and automatic ranging speed up measurements and increase the convenience of use during everyday work.

Testing the voltage level of a block battery using the red and black test probes of a multimeter.

Features that increase comfort and safety

The UT133A features a diode test, continuity buzzer, NCV function, Data Hold, backlit LCD display, and auto power off. Additional features include alarms warning of overvoltage or overcurrent, as well as safety features for increased safety. A 2-meter drop-resistant housing enhances the device's durability, and a CAT II 600V safety rating makes the multimeter suitable for standard measurement tasks.

Measuring a small electronic component on a green background using the probes of a UNI-T digital multimeter.

Included

  • Handheld Digital Multimeter
  • Test Leads
  • Thermocouple
  • User Manual

Specification

ManufacturerUni-T
ModelUT133A
TypeDigital Multimeter
DC Voltage600mV / 6000mV / 60V / 600V ±(0.5%+3)
AC Voltage600V ±(0.7%+3)
DC Current600uA / 60mA / 600mA / 10A ±(1.0%+3)
AC Current10A ±(1.2%+3)
Resistance600Ω / 6000Ω / 60kΩ / 600kΩ / 60MΩ ±(0.8%+2)
Capacitance9.999nF / 99.99nF / 999.9nF / 9.999µF / 99.99µF / 999.9µF / 9.999mF ±(4.0%+5)
Frequency10.00Hz ~ 1.000MHz ±(0.1%+4)
Temperature °C-40°C ~ 1000°C ±(1.0%+4)
Temperature °F-40°F ~ 1832°F ±(1.5%+5)
Maximum Reading6000
RangingAutomatic
FunctionsDiode Test, Continuity Beeper, NCV, Data Hold, LCD Backlight, Auto Power Off, Over Voltage or Current Alarm, High Voltage Warning
SafetyCAT II 600V
Drop Test2 m
Power supply2x 1.5V (R03) battery
Weight255 g
Dimensions155 mm x 76.5 mm x 49 mm
Display dimensions56.8 mm x 36.1 mm
