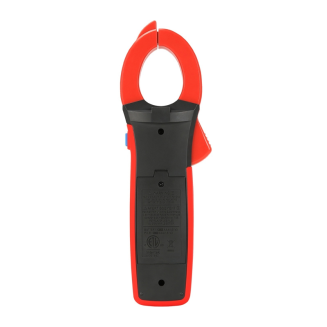

Uni-T UT208B Digital Clamp Meter

The Uni-T UT208B digital clamp meter is the most versatile tool in the series, designed for use in demanding electrical installations. Its wide range of functions makes it ideal for diagnostics and service.

UNI-T digital clamp meter held in an electrician's glove during testing in a control cabinet.

The greatest measurement capabilities

The UT208B allows you to measure AC and DC current up to 1000A and voltage up to 1000V, as well as precisely check temperature, frequency, and capacitance. Highest accuracy and operational safety are guaranteed by a set of advanced features, such as True RMS, NCV, LPF, LoZ, and Zero mode. The device is excellent at analyzing sudden load spikes thanks to inrush current measurement, and the optional Flex probe allows for an impressive extension of the measurement range.

UNI-T meter on a black countertop measuring components on a green PCB.

Clear design and safety

The large screen, bargraph, and robust construction ensure ease of use. The device meets CAT III 1000V / CAT IV 600V standards.

UNI-T clamp multimeter in an electrician's hand, aimed at thick electrical wires.

Included

  • Clamp meter
  • Battery x3
  • Test leads
  • Temperature probe
  • User manual

Specification

ManufacturerUni-T
ModelUT208B
TypeTrue RMS Clamp Meter
AC Current1000A ±(2%+5)
DC Current1000A ±(2%+5)
Inrush Current1000A ±(10%+10)
AC Voltage1000V ±(1.2%+3)
DC Voltage1000V ±(0.5%+5)
LPF ACV1000V ±(2%+5)
LoZ ACV1000V ±(2%+5)
AC Voltage Bandwidth40Hz ~ 400Hz
Resistance60MΩ ±(1%+2)
Capacitance60mF ±(4%+5)
Temperature-40°C ~ 1000°C ±(1%+2)
Frequency10Hz ~ 1MHz ±(0.1%+3)
Duty Cycle10% ~ 90% ±(2.6%+7)
Maximum Reading6000
FunctionsTrue RMS, NCV, LPF, LoZ, Zero Mode, Inrush Current Measurement, Bargraph, Flex Probe Option
Jaw Opening42 mm
Power Supply3x 1.5V (R03) battery
Display43 x 45 mm
Dimensions272 x 81 x 43.5 mm
Weight420 g
SafetyCAT III 1000V / CAT IV 600V
CertificatesCE, UKCA, cETLus
