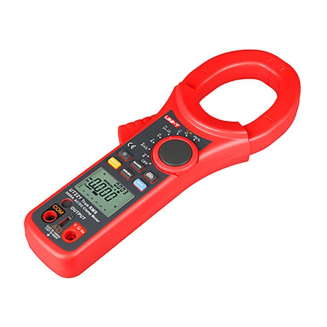

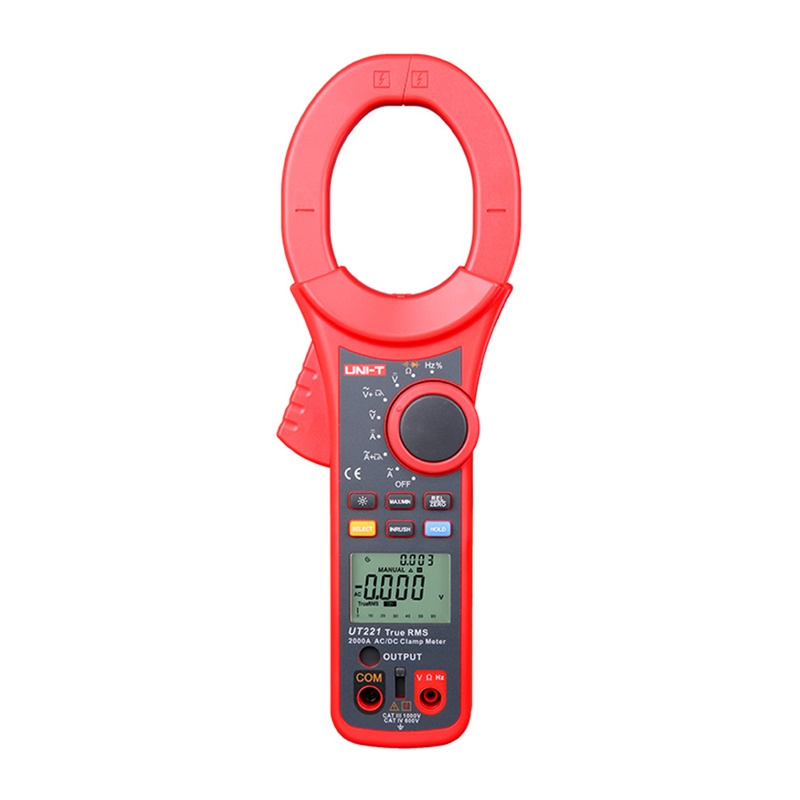

Uni-T UT221 Digital Current Meter

The Uni-T UT221 is an advanced clamp meter designed to measure high AC and DC currents up to 2000 A. Its wide jaw opening of 63 mm and automatic ranging make it ideal for working with complex electrical and industrial installations. This model measures AC voltage up to 750 V, DC voltage up to 1000 V, resistance up to 66 MΩ, and frequency up to 20 MHz. Additionally, it offers True RMS AC voltage and current, duty cycle measurement, a low-pass filter, inrush current measurement, and a relative mode, which enhances its diagnostic capabilities for more demanding systems.

UNI-T digital clamp meter clamped onto a thick red cable in the switchboard.

Convenient operation and functions supporting everyday work

A maximum reading of 6000 and a 66-segment analog bargraph make it easy to observe changes in measured parameters. Equipped with MIN/I-OUT, Data Hold, MAX, diode test, and a continuity buzzer, the meter allows you to conveniently perform a variety of measurements. A clear set of icons, a low battery indicator, and a robust design measuring 298 x 107 x 47 mm and weighing 726 g make the Uni-T UT221 a practical tool for more demanding measurement applications.

Voltage measurement with a UNI-T meter by an operator wearing protective gloves in a control cabinet.

Included

  • Clamp Meter
  • Battery x1
  • Test Leads
  • Output Cable
  • Case
  • User Manual

Specification

ManufacturerUni-T
ModelUT221
TypeTrue RMS Clamp Meter
AC Current2000A ±(2.5%+5)
DC Current2000A ±(2.5%+5)
AC Voltage750V ±(1.2%+5)
DC Voltage1000V ±(0.8%+1)
Resistance66MΩ ±(1%+2)
Frequency20MHz ±(0.1%+3)
Duty Cycle10% ~ 90%
Maximum Reading6000
FunctionsTrue RMS, Diode Test, Continuity Test, Data Hold, MAX, Relative Mode, Low Pass Filter, Inrush Current Measurement, Analog Bargraph, Auto Ranging, Low Battery Indicator
Jaw Opening63 mm
Power Supply9V Battery (6F22)
Display43 x 30 mm
Dimensions298 x 107 x 47 mm
Weight726 g
CertificatesCE, UKCA, cETLus
