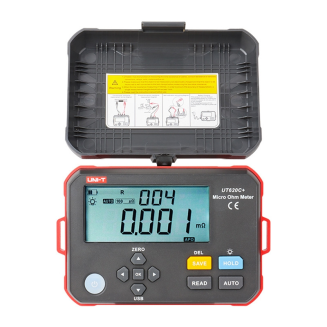

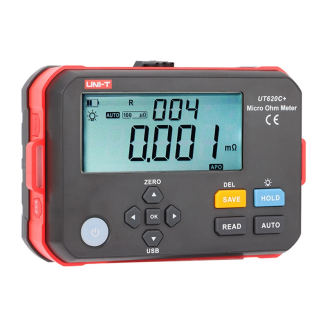

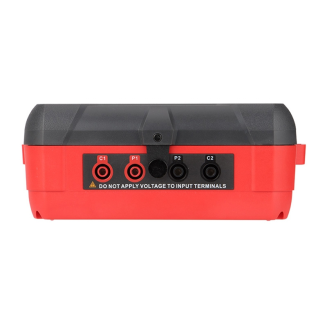

Uni-T UT620C+ Digital Micro-Ohmmeter
The Uni-T UT620C+ digital microohmmeter is a precise device designed for measuring very low resistances – from 0.001 mΩ to 300 kΩ – making it suitable for both small component inspections and more complex installations. High resolution of up to 1 μΩ and accuracy of ±0.1% FS allow for the detection of even small resistance changes, which is important for technical diagnostics. The four-wire method limits the influence of test leads on the result, and a test current of up to 1 A enables stable measurements in a variety of conditions. Additionally, the device offers storage for up to 500 results, a clear LCD display with backlight, and a compact, portable, battery-powered design.
| Manufacturer | Uni-T |
|---|---|
| Model | UT620C+ |
| Resistance measurement range | 0.001 mΩ – 300.0 kΩ |
| Resolution | up to 1 μΩ |
| Open circuit voltage | ≤ 4.2 V |
| Measurement speed | approx. 2 measurements/sec |
| Memory | up to 500 data sets |
| Display | segmented LCD with backlight |
| Interface | USB Type-C |
| Input protection | up to 36 V AC/DC |
| Protection class | IP54 |
| Power supply | Li-ion battery 3.7 V / 3200 mAh |
| Power consumption | ≤ 8 W |
| Dimensions | 161 × 117 × 68 mm |
| Weight | 480 g (with battery) |
